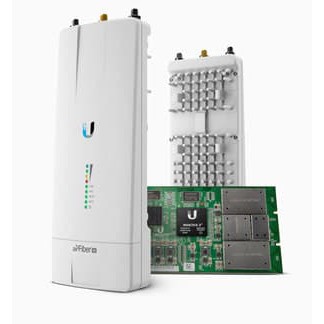

UBIQUITI UBNT AF-5X airFiber X Carrier Backhaul Radio

Detail UBIQUITI UBNT AF-5X airFiber X Carrier Backhaul Radio

Up to 500+ Mbps Real Throughput, Up to 200+ km Range
5 GHz (Full-Band Certification including DFS)

RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 12W
Supported Voltage Range 19-29VDC
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications CE, FCC, IC
Operating Temperature -40 to 55 C (-40 to 131 F)
AF-5X Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
AF-5X System
Processor INVICTUS IC
Maximum Throughput 500+ Mbps1
Maximum Range 200+ km1
Encryption 128-bit AES
OS airOS F
Wireless Modes Master/Slave
AF-5X Radio
Frequency Range
FCC 15.407
IC RSS-210
ETSI EN 301 893, EN 302 502
Other Regions
5150 - 5350 MHz, 5470 - 5850 MHz
5470 - 5600 MHz, 5650 - 5850 MHz
5470 - 5875 MHz
5150 - 5950 MHz2
Max. Conducted TX Power 26 dBm2
(Dependent on Regulatory Region)
Frequency Accuracy 2.5 ppm without GPS Synchronization
0.2 ppm with GPS Synchronization
Channel Bandwidth 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles
