Ubiquiti UAP AC M Unifi Access Point AC Mesh

Detail Ubiquiti UAP AC M Unifi Access Point AC Mesh

Deskripsi : Ubiquiti UAP AC M Unifi Access Point AC Mesh

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Untuk tipe UAP-AC-Mesh ada 2 model packaging
1. Single Unit ( Isi 1 pcs )
2. 5-Pack ( Isi 5 Pcs )

UAP-AC-M Specifications
Dimensions : 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight : 152 g (5.36 oz) with Antennas
Networking Interface : (1) 10/100/1000 Ethernet Port
Buttons : Reset
Power Method : 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC)
Power Supply : 24V, 0.5A Gigabit PoE Adapter*
Power Save : Supported
Maximum Power Consumption : 8.5W
Maximum TX Power
2.4 GHz : 20 dBm
5 GHz: 20 dBm
Antennas
2.4 GHz: 3 dBi
5 GHz : 4 dBi
(2) External Dual-Band Omni Antennas
Wi-Fi Standards : 802.11 a/b/g/n/r/k/v/ac
Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID : Up to 8 per Radio
Mounting : Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature : -30 to 70 C (-22 to 158 F)
Operating Humidity: 5 to 95% Non condensing
Certifications : CE, FCC, IC
* Only the single-pack of the UAP-AC-M includes a PoE adapter.

Advanced Traffic Management

VLAN : 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation : Supported
WMM : Voice, Video, Best Effort, and Background
Concurrent Clients : 250+

Supported Data Rates (Mbps)
Standard Data Rates

802.11ac : 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n : 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps

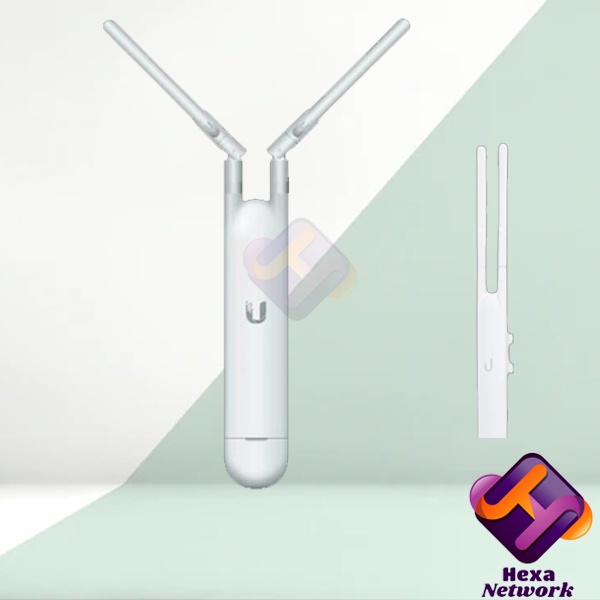

Gambar produk
