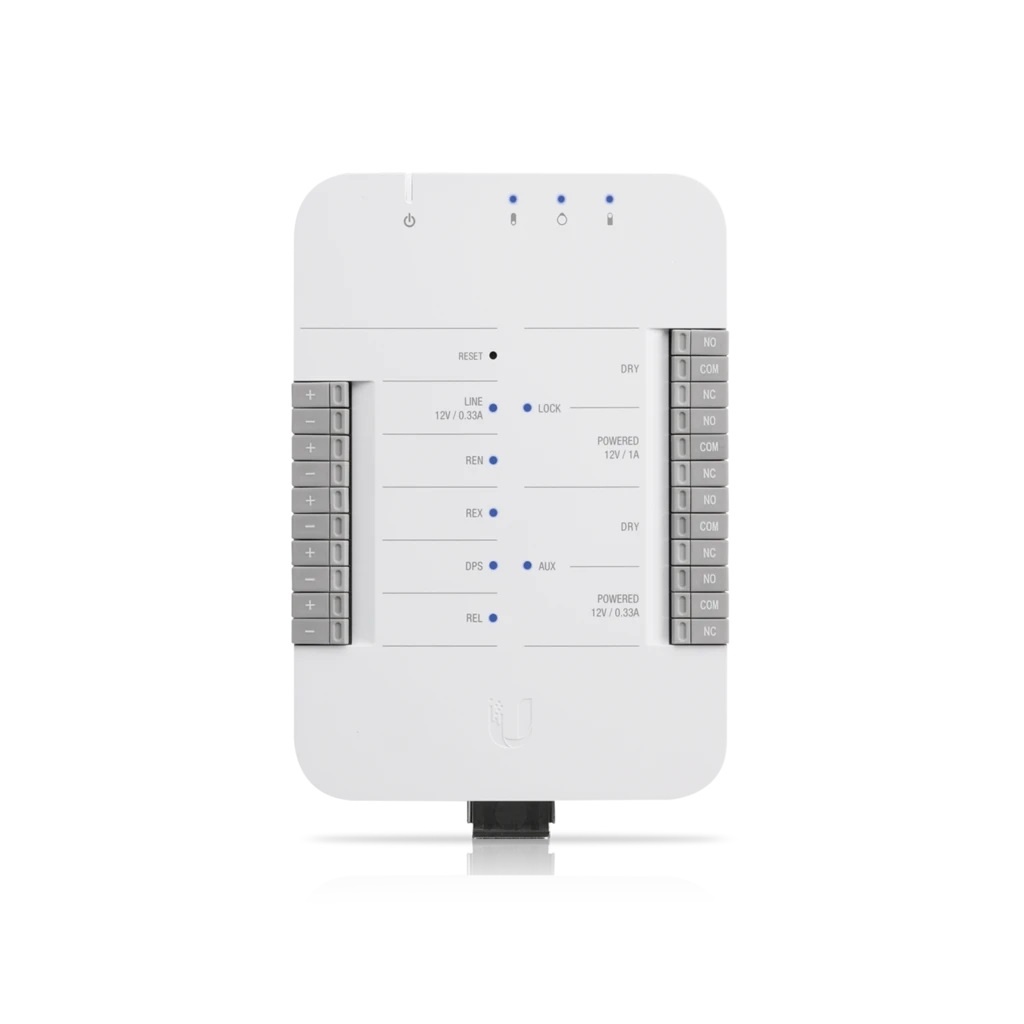

Ubiquiti UA-HUB Access Hub.

Detail Ubiquiti UA-HUB Access Hub.

Features:
Powered by 802.3bt (PoE++) switch
Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
12V powered and dry relays compatible with most locks
Four inputs for motion sensors, request-to-exit devices and door position switch
Managed with UniFi Access Application in UDM-Pro

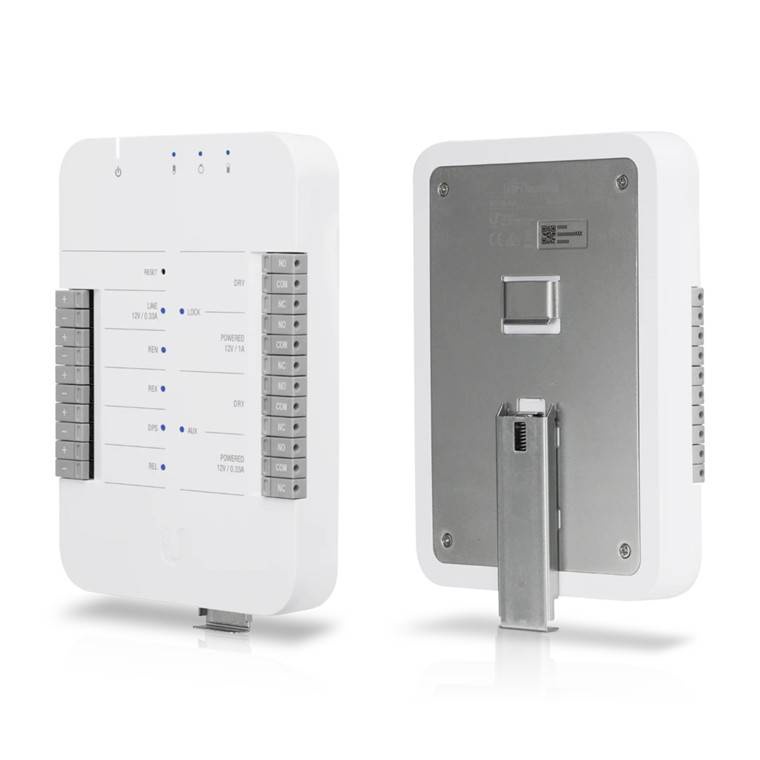

DIN-rail mounting
UA-Hub
Dimensions 190 x 126 x 33 mm
(7.48 x 4.96 x 1.29")
Weight 457 g
(16.12 oz)
Enclosure Characteristics Plastic Enclosure with Metal Mount Plate
Mounting Options DIN Rail
Networking Interface (4) 1 Gbps Ethernet
Max. Power Consumption 40W
Power Method 802.3bt PoE
Input Terminals REX - Request to Exit
REN - Request to Enter
REL - Remote Release
DPS - Door Position Sensor
Dry Output Relay
Lock
Aux
Rated 30VDC, up to 1A
Rated 30VDC, up to 1A
Powered Output Relay
Lock
Aux
Line
12VDC, up to 1A
12VDC, up to 0.33A
12VDC, up to 0.33A
LEDs (1) System, (3) PoE Out, (4) Input
(2) Output Relays, (1) 12VDC Out
Buttons Terminal Blocks, Reset
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 5 - 90% Noncondensing
Certifications CE, FCC, IC
