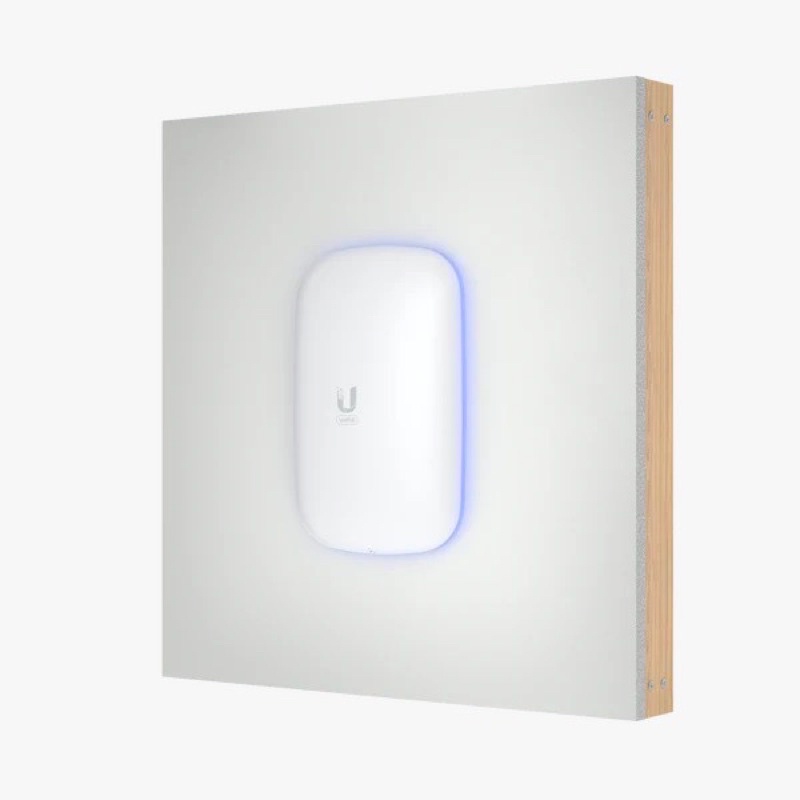

Dual-band WiFi 6 connectivity 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate Fits any standard US duplex wall outlet Easily extends wireless coverage across large homes or offices
Mechanical Dimensions 169.7 x 112.2 x 32.2 mm (6.68 x 4.42 x 1.27") Weight 290 g (10.2 oz) Enclosure material Plastic Hardware Management interface Bluetooth Button Factory reset LED* White/blue *Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes. Power method Universal AC input, 100-240VAC, 0.3A max., 50/60 Hz Supported voltage range 110 to 240VAC Max. power consumption 11W Max. TX power 2.4 GHz : 22 dBm 5 GHz : 26 dBm MIMO 2.4 GHz : 2 x 2 (UL MU-MIMO) 5 GHz : 4 x 4 (DL/UL MU-MIMO) Throughput rate 2.4 GHz : 573.5 Mbps 5 GHz : 4.8 Gbps Antenna gain 2.4 GHz : 5 dBi 5 GHz : 6 dBi Operating temperature -10 to 50° C (14 to 122° F) Operating humidity 5 to 95% noncondensing Certifications FCC, IC Software WiFi standards 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ Zero wait DFS Yes Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
