Detail Ubiquiti U-POE-AF , 802.3af PoE Injector

Ubiquiti U-POE-AF , PoE Injector 802.3AF

Dimensions : 86 x 46 x 33 mm (3.39 x 1.81 x 1.30")
Output Voltage : 48VDC @ 0.32A
LAN Activity Indicator : No
Gigabit LAN Port : Yes
Remote Reset Capability : Yes
Reset Button : No
Rated Voltage : 100-240VAC @ 50/60Hz
Input Current : 500mA @ 90VAC
Inrush Current : <100A Peak @ 25°C
Efficiency : 0.8425
Output Ripple : 200mV p-p
Switching Frequency : 65 kHz
Line Regulation : ≤ 3%
Load Regulation : ≤ 5%
2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering –
Operating Temperature : 0 to 40° C (32 to 104° F)
Storage Temperature : -30 to 70°C (-22 to 158° F)
Operating Humidity : 5 to 90% Noncondensing
AC Connector : IEC-320 C6
Data IN / POE : RJ45 Shielded Socket
Surge Protection : Difference and Common Mode
Clamping Protection : 11V Data, 60V Power
Max. Surge Discharge : 1500A (8/20 μs) Power
Peak Pulse Current : 36A (10/1000 μs) Data
Shunt Capacitance : <5 pF data
Response Time : <1 ns
Certifications : CE, FCC, IC, UL

Gambar produk

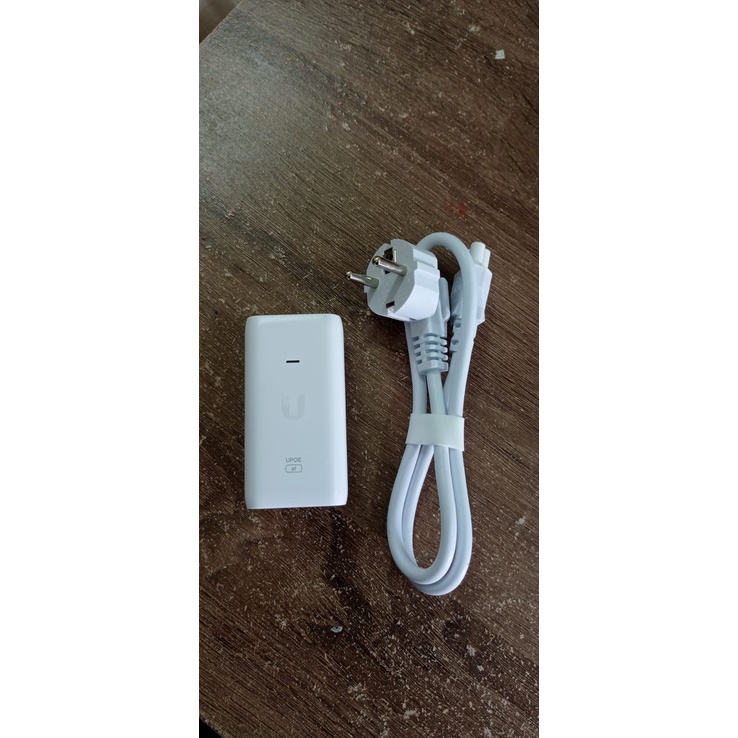

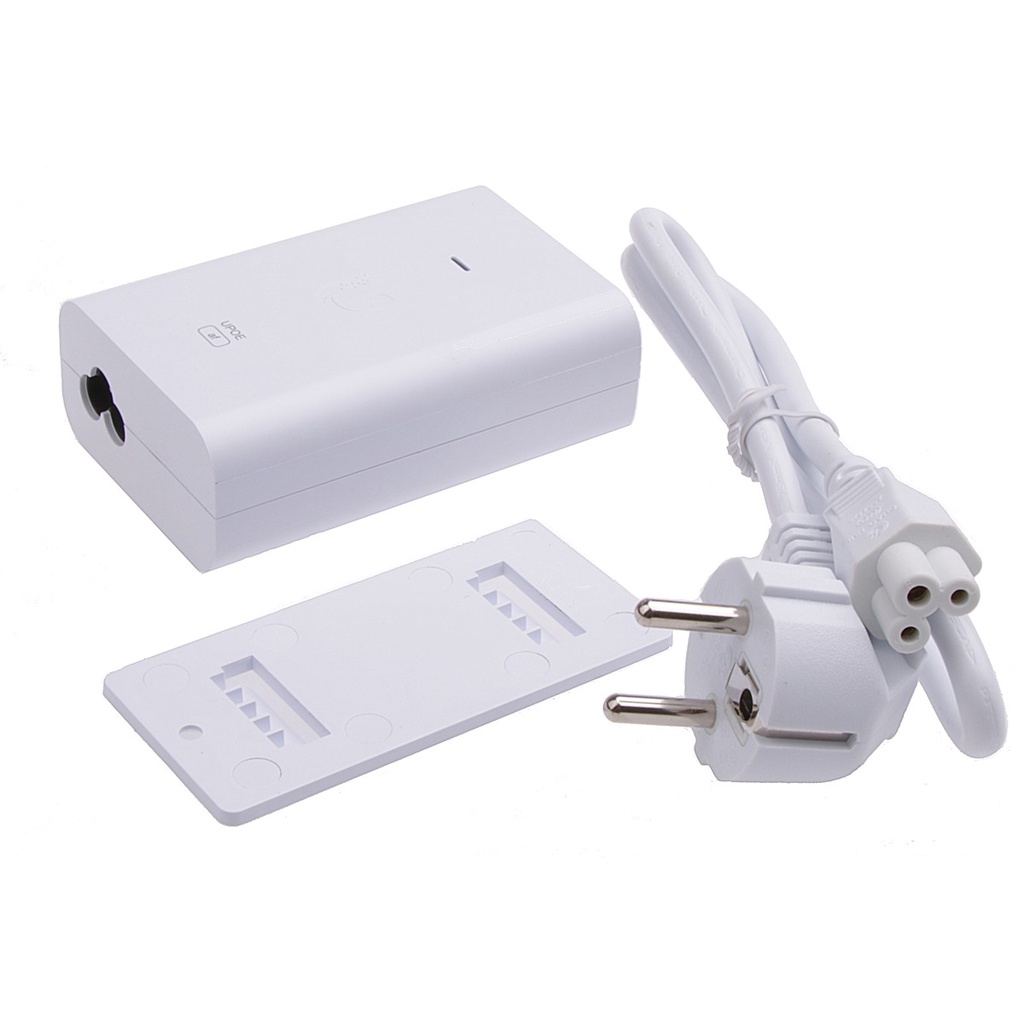

Ubiquiti U-POE-AF , 802.3af PoE Injector
