Detail Ubiquiti Switch Pro Aggregation USW-Pro-Aggregation

Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports.

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

(1) 1.3” LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
Dimensions 442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")
Weight Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material SGCC Steel
Hardware
Total Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Network Interface (28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display (1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
LEDs SFP28/SFP+: White, Link and Activity
Management Interface Ethernet In-Band
Modes SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC

Gambar produk

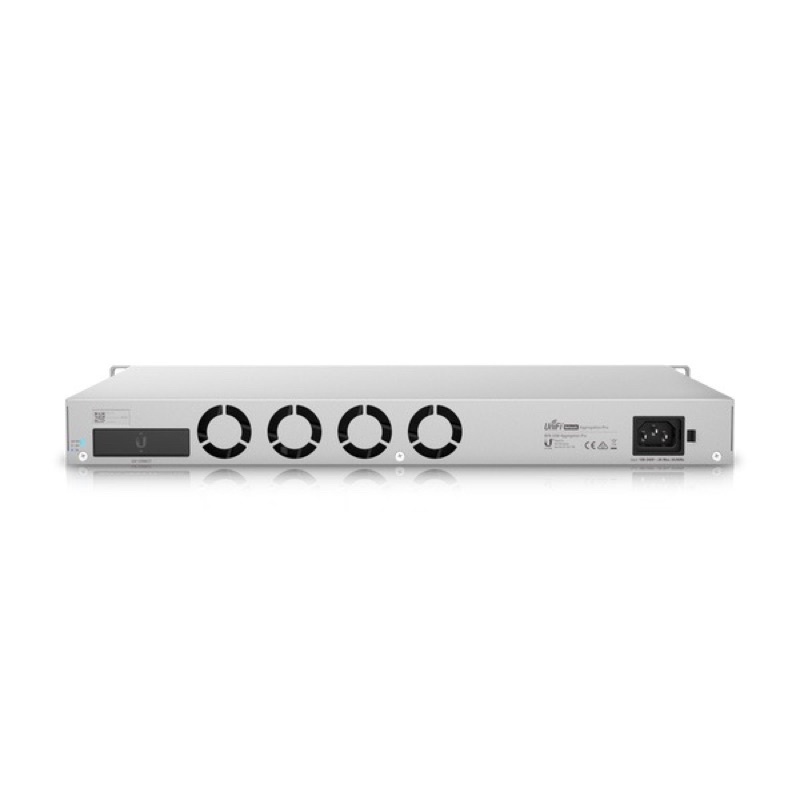

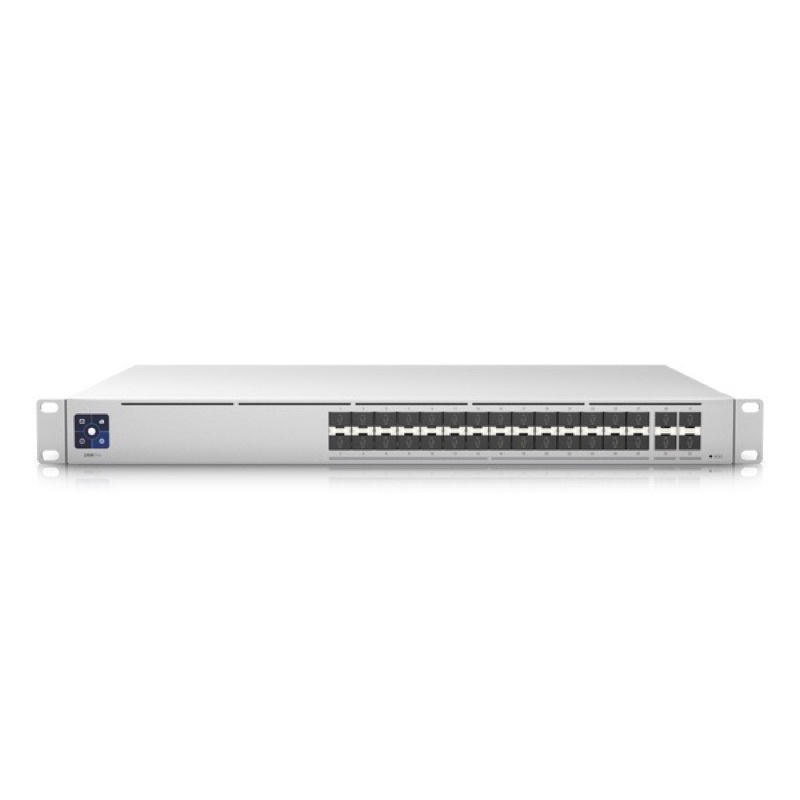

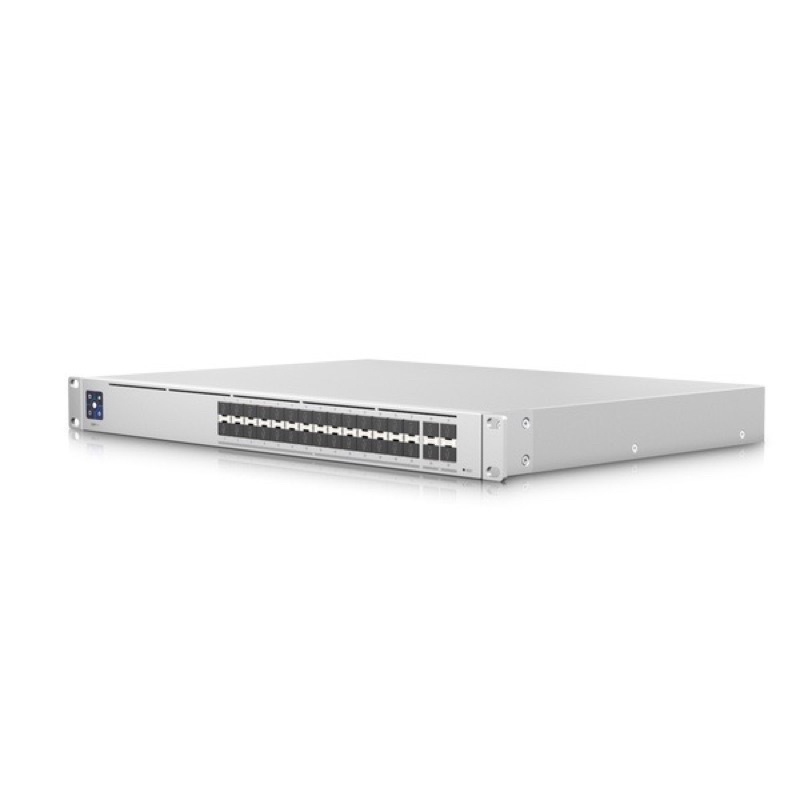

Ubiquiti Switch Pro Aggregation USW-Pro-Aggregation
