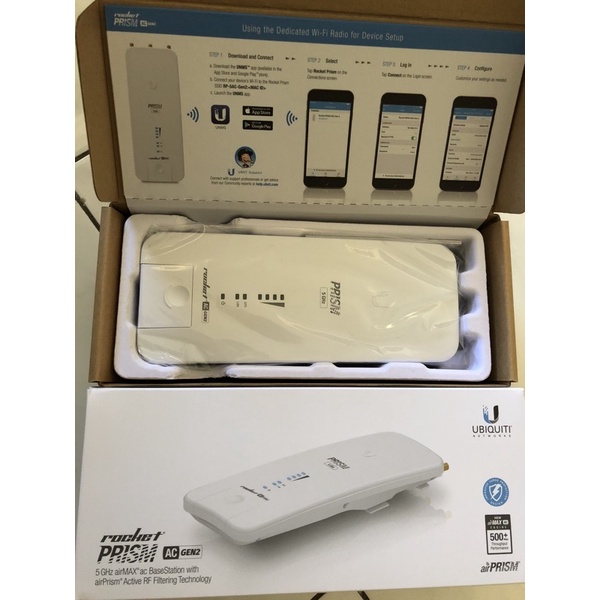

Ubiquiti Rocket 5ac prism RP-5ac-gen2

Detail Ubiquiti Rocket 5ac prism RP-5ac-gen2

RP-5AC-Gen2
Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight 400 g (14.11 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
RF Connectors (2) RP-SMA (Waterproof), (1) GPS* (Waterproof)
LEDs (4) Signal Strength, GPS*, LAN, Power
Enclosure Die-Cast Aluminum with White Powder Coating
Max. Power Consumption 9.5W
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs Atheros MIPS 74Kc
Memory 128 MB DDR2 SDRAM
Supported Voltage Range 18-26VDC
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
ESD/EMP Protection 24 kV Contact / Air for Ethernet
Operating Temperature -40 to 80 C (-40 to 176 F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Shock and Vibration ETSI300-019-1.4
Modes Access Point, Station
Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment Dynamic Ack and Ackless Mode
Power Adjustment Software Adjustable UI or CLI
Security WPA2 AES Only
QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support,
Discovery Protocol, Frequency Band Offset, Ackless Mode
Certifications CE, FCC, IC
