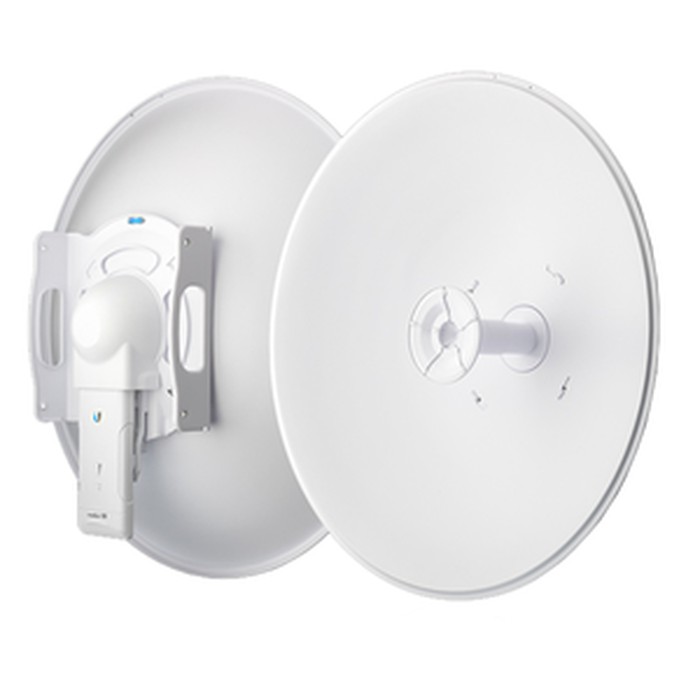

Detail Ubiquiti RD-5G30 RocketDish 5GHz 30Dbi Light Weight
Pair a RocketDish antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish is available in the following frequency models:2.4 GHz
5 GHz
Spesifikasi :
Antenna Characteristics
- Model : RD-5G30
- Dimensions* : 650 x 650 x 304 mm (25.6 x 25.6 x 11.97")
- Weight** : 9.8 kg (21.61 lb)
- Frequency Range : 5.1 - 5.8 GHz
- Gain : 30 dBi
- HPOL Beamwidth : 5 (3 dB)
- VPOL Beamwidth : 5 (6 dB)
- F/B Ratio : 34 dB
- Max. VSWR : 1.4:1
- Wind Loading : 787 N @ 200 km/h (177 lbf @125 mph)
- Wind Survivability : 200 km/h (125 mph)
- Polarization : Dual-Linear
- Cross-pol Isolation : 35 dB Min.
- ETSI Specification : EN 302 326 DN2
- Mounting : Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
* Dimensions exclude pole mount and Rocket (Rocket sold separately)
** Weight includes pole mount and excludes Rocket (Rocket sold separately)
