Ubiquiti R5AC-LITE Rocket M5AC

Detail Ubiquiti R5AC-LITE Rocket M5AC

Overview Of Ubiquiti ubnt Rocket M5 AC Lite RocketRM5 R5AC-Lite R5AClite
Ubiquiti Networks has designed the first airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations

Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
Weight 250 g (8.81 oz)
Power Supply 24V, 0.5A Gigabit PoE Adapter
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Operating Frequency Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3
5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Networking Interface (1) 10/100/1000 Mbps
RF Connections (2) RP-SMA (Waterproof )
LEDs Power, LAN, (4) Signal Strength
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Enclosure Characteristics Outdoor UV Stabilized Plastic
Supported Voltage Range 20-26VDC
ESD/EMP Protection ± 24KV Air / Contact
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Modes Access Point, Station
Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment Dynamic Ack and Ackless Mode
Power Adjustment Software Adjustable UI or CL
Security WPA2 AES Only

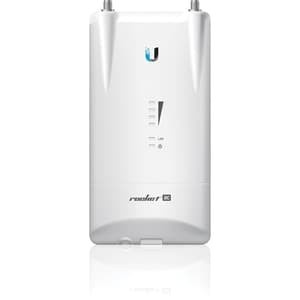

Gambar produk
