Ubiquiti PowerBeam M5 400 PBE-M5-400

Detail Ubiquiti PowerBeam M5 400 PBE-M5-400

Overview Of Ubiquiti PowerBeam M5 400mm (PBE-M5-400)
Radio Wireless Point to Point jarak Up to 25KM

Spesifikasi :
PBE-M5-400 System and Regulatory/Compliance
- Processor Specs : Atheros MIPS 74Kc, 560 MHz
- Memory : 64 MB DDR2, 8 MB Flash
- Networking Interface : (1) 10/100/1000 Ethernet Port
- Wireless Approvals : FCC, IC, CE
- RoHS Compliance : Yes
PBE-M5-400 Physical/Electrical/Environmental
- Dimensions : 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
- Weight : 1.753 kg (3.87 lb)
- Power Supply : 24V, 0.5A Gigabit PoE
- Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Max. Power Consumption : 8W
- Gain : 25 dBi
- Operating Frequency
Worldwide : 5170 - 5875 MHz
USA : 5725 - 5850 MHz
- Wind Loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph)
- Wind Survivability : 200 km/h (125 mph)
- LEDs : (1) Power, (1) LAN, (4) WLAN
- Signal Strength LEDs : Software-Adjustable to Correspond to Custom RSSI Levels
- Channel Sizes : 5/8/10/20/30/40 MHz
- Polarization : Dual Linear
- Enclosure : Outdoor UV Stabilized Plastic
- Mounting : Pole-Mount Kit Included
- ESD/EMP Protection : Air: 24 kV, Contact: 24 kV
- Operating Temperature : -40 to 70 C (-40 to 158 F)
- Operating Humidity : 5 to 95% Noncondensing
- Salt Fog Test : IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test : IEC 68-2-6
- Temperature Shock Test : IEC 68-2-14
- UV Test : IEC 68-2-5 at 40 C (104 F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test : ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
PBE-M5-400 Antenna Information
- Gain : 25 dBi
- Max. VSWR : 1.5:1
- Built-In Mechanical Downtilt : +20 to -10

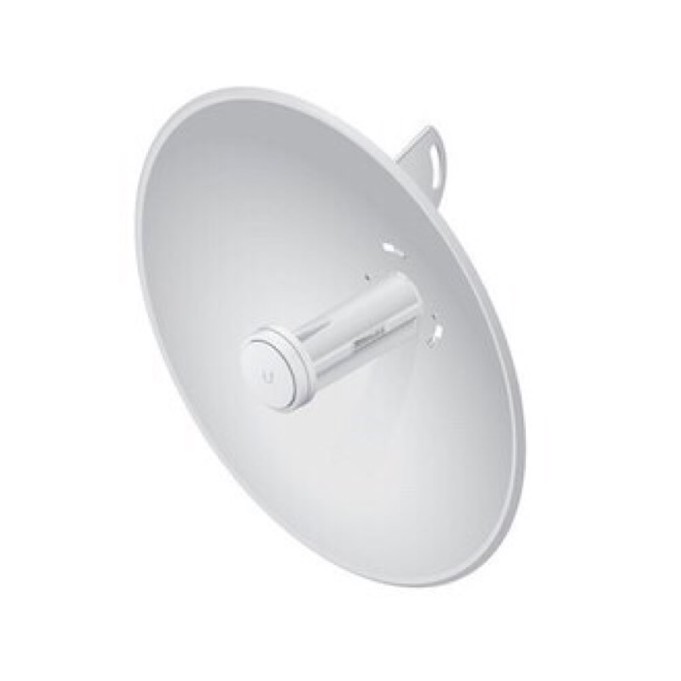

Gambar produk
