Detail Ubiquiti POE-48-24W-G Poe Adapter With Gigabit Lan Port POE Gigabit

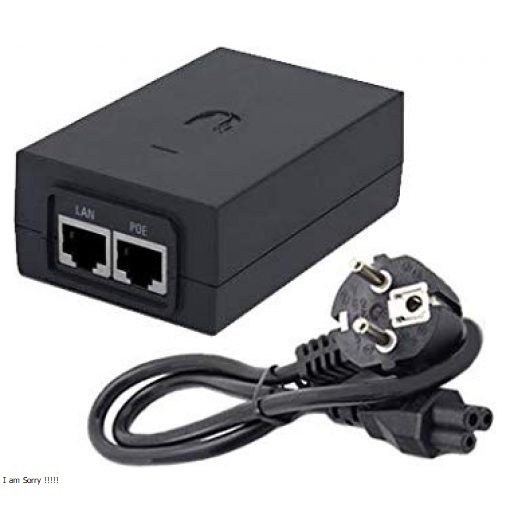

Overview Of Ubiquiti UBNT POE-24-24W-G Poe Adapter With Gigabit Lan PortModel POE-24-24W-G
Dimensions : 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight : 158.5 g (5.59 oz)
Output Voltage : 24VDC @ 1.0A
LAN Activity Indicator : No
Gigabit LAN Port : Yes
Remote Reset Capability : Yes
Reset Button : Yes
Input Voltage : 90-260VAC @ 47-63 Hz
Input Current : 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Curren : 60A Peak @ 120VAC, 120A Peak @ 230VAC
Efficiency : 80+%
Output Ripple : 1% Max
Switching Frequency : 65 kHz
Line Regulation : 1%
Load Regulation : 3%
2-Pair Powering : -
4-Pair Powering : Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature : 0 to 40 C (32 to 104 F)
Storage Temperature : -30 to 70C (-22 to 158 F)
Operating Humidity : 35 to 95% Noncondensing
AC Connector : IEC-320 C6
Data IN / POE : RJ45 Shielded Socket
Surge Protection : Difference and Common Mode
Clamping Protection : 11V Data, 60V Power
Max. Surge Discharge : 1500A (8/20 s) Power
Peak Pulse Current : 36A (10/1000 s) Data
Shunt Capacitance : 5 pF data
Response Time : 1 ns
Compliance : IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN5502
AC Cable with Earth Ground : USA, EU, AR, BR, UL, CCC, Mexico
