Ubiquiti PoE-24-AF5X POE AF5X 24V

Detail Ubiquiti PoE-24-AF5X POE AF5X 24V

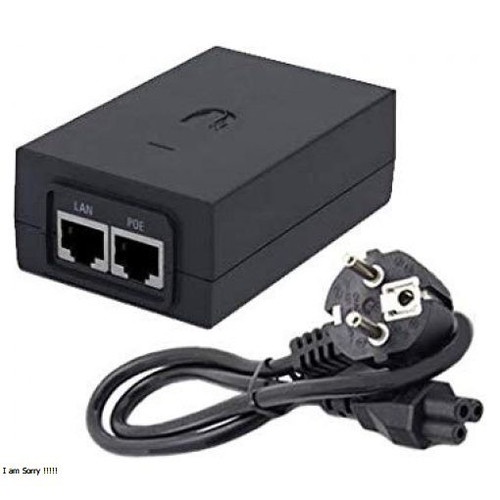

This Ubiquiti PoE Gigabit Injector is 24VDC, 24W and compatible with most Ubiquiti PoE devices including airFiber, airMAX, airVision, UniFi, mFi. Includes surge protection, clamping protection, maximum surge discharge, and AC cable with earth ground.

Product Specifications
Dimensions: 88 x 57 x 33mm (3.47 x 2.24 x 1.30")
Weight: 158.5g (5.59oz)
Output Voltage: 24VDC @ 1.0A
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button: Yes
Input Voltage: 90-260VAC @ 47-63Hz
Input Current:
0.6A @ 120VAC
0.4A @ 240VAC
Inrush Current:
60A Peak @ 120VAC
120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65kHz
Line Regulation: 1%
Load Regulation: 3%
4-Pair Powering: Pins 1,2,4,5(+) and Pins 3,6,7,8(-)
Operating Temperature: 0 to 40C (32 to 104F)
Storage Temperature: -30 to 70C (-22 to 158F)
Operating Humidity: 35 to 95% non-condensing
AC Connector: IEC-320 C6
Data IN/PoE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20us) Power
Peak Pulse Current: 36A (10/100us) Data
Shunt Capacitance: 5pF Data
Response Time: 1ns
Compliance: IEC 60950-1:2005+A1 UL60950-1, EN55022:2010, EN55024:2010, FCC Class B

The POE-24-AF5X gigabit PoE adapter is designed to power AirFiber 5X devices. It can provide a voltage of 24V and up to 1A current. It has an LED indicating power supply. You may have to combine the adapter to the cable between radio and the network switch.
