Detail Ubiquiti PBE M5 400 PowerBeam M 5Ghz 400 25dBi
Deskripsi : Ubiquiti PBE M5 400 Powerbeam mimo 5Ghz 400 25dBi
"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"
Specifications PBE-M5-400
Dimensions : 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight (Mount Included) : 1.753 kg (4.789 lb)
Gain : 25 dBi
Networking Interface : (1) 10/100/1000 Ethernet Port
Enclosure : Outdoor UV Stabilized Plastic
Max. Power Consumption : 8W
Max. TX Power : 26 dBm
Power Supply : 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability : 200 km/h (125 mph)
Wind Loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Mounting : Pole Mounting Kit Included
Salt Fog Test : IEC 68-2-11 (ASTM B117),Equivalent: MIL-STD-810 G Method 509.5
Vibration Test : IEC 68-2-6
Temperature Shock Test : IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test : ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Non condensing
Certifications : CE, FCC, IC
Operating Frequency (MHz)
Worldwide : 5150 - 5875
US/CA :
U-NII-1 : 5150 - 5250
U-NII-2A : 5250 - 5350
U-NII-2C : 5470 - 5725
U-NII-3 : 5725 - 5850

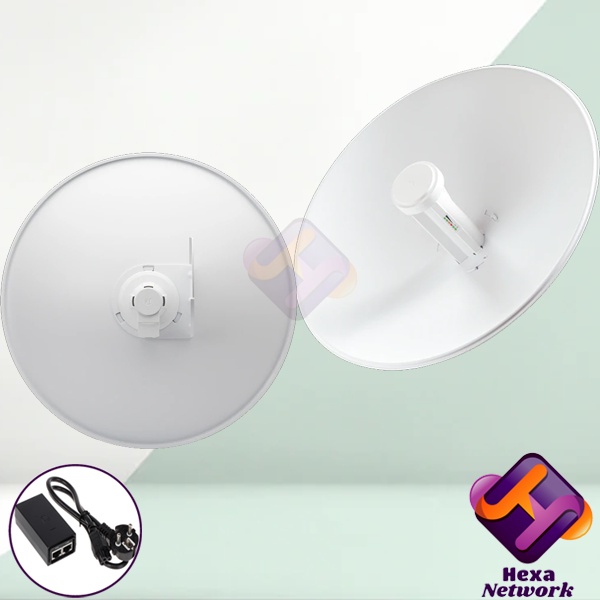

Gambar produk
