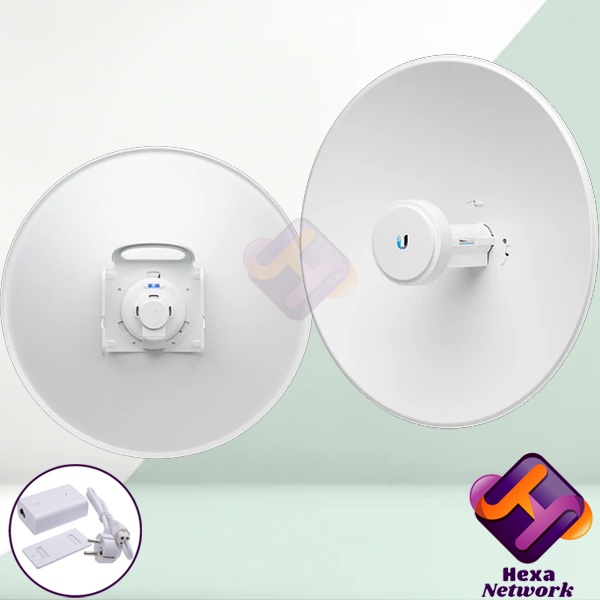

Ubiquiti PBE 2AC 400 PowerBeam 2.4Ghz AC 400 18dBi

Detail Ubiquiti PBE 2AC 400 PowerBeam 2.4Ghz AC 400 18dBi

Deskripsi : Ubiquiti PBE 2AC 400 Powerbeam 2.4Ghz AC 400

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Specifications : PBE-2AC-400
Dimensions with Radome : 420 x 420 x 289 mm (16.54 x 16.54 x 11.38")
Weight (Mount Included) : 1.795 kg (4.809 lbs)
Power Supply : 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption : 7.5W
Power Method Passive PoE : (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range : 22 to 26VDC
Gain : 18 dBi
Networking Interface : (1) 10/100/1000 Ethernet Port
Processor Specs MIPS : 74Kc
Memory : 64 MB
LEDs : Power, Ethernet, (4) Signal Strength
Channel Sizes : PtP Mode : 10/20/40 MHz
PtMP Mode : 10/20/40 MHz
Enclosure Characteristics : Antenna Feed Outdoor(UV Stabilized Plastic)
Dish Reflector(Powder-Coated SPCC)
Mounting Pole-Mounting Kit : (Included)
Wind Loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph
Wind Survivability : 200 km/h (125 mph)
ESD/EMP Protection Air :: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Non condensing
RoHS Compliance : Yes
Salt Fog Test : IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test : IEC 68-2-6
Temperature Shock Test : IEC 68-2-14
UV Test : IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test : ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 Certifications : CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2412-2472
USA 2412-2462
Management Radio (MHz)
Worldwide 5150-5250
USA U-NII-3: 5725-5850
