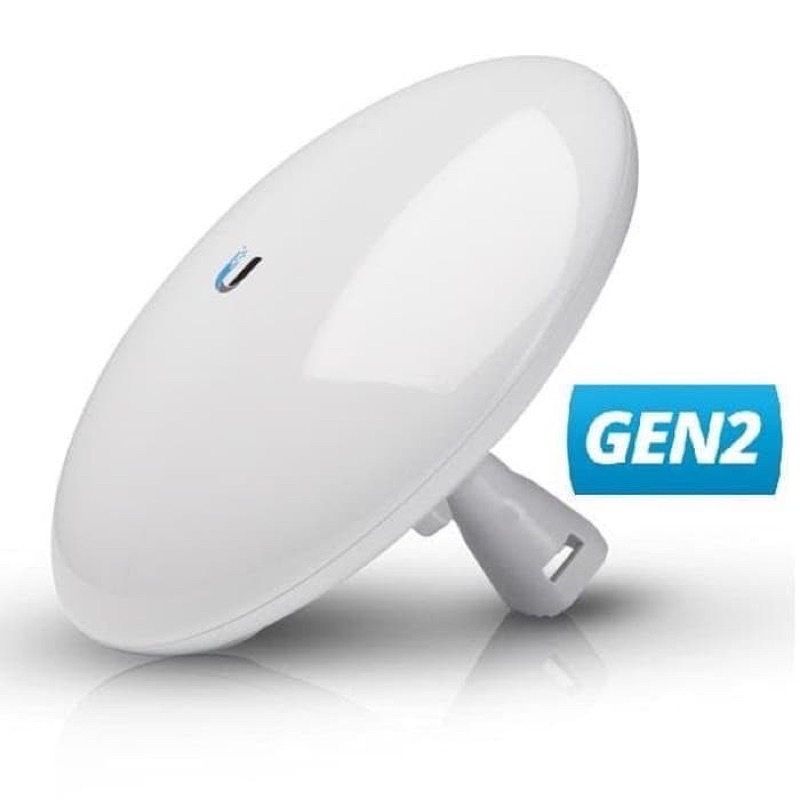

Ubiquiti NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE

Detail Ubiquiti NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE

Ubiquiti NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE

Product Highlights

Dedicated Wi-Fi Radio for Management
Throughput: 450+ Mb/s
Atheros MIPS 74Kc, 720 MHz Processor
128MB DDR2, 8MB Flash Memory
1 x 10/100/1000 Ethernet Port
airOS Software
Power/LAN/WLAN LED Indicators
Versatile Mounting
FCC, IC, CE Approved
RoHS Compliant

Dimensions (Mount Included): 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included): 0.530 kg (1.17 lb)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 8.5W
Gain: 19 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port, Wi-Fi for Management
Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2, 8 MB Flash
LEDs: Power, Ethernet, (4) Signal Strength
Signal Strength: LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz
Channel Sizes PtMP Mode: 10/20/30/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included), Wall-Mount
Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock: Test IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

NBE-5AC-Gen2 Operating Frequency: 2412 - 2472 MHz, 5150 - 5875 MHz
