Detail Ubiquiti nanostation loco 5ac / ns-5acl TANPA POE
note: Blom termasuk POE
NS-5ACL
Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
Weight 180 g (6.35 oz)
Power Supply 24V, 0.5A Gigabit PoE Supply*
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain 13 dBi
Channel Bandwidths 10/20/30/40/50/60/80 MHz
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.8:1
Beamwidth 45 (H-pol) / 45 (V-pol) / 45 (Elevation)
Enclosure Outdoor UV Stabilized Plastic
LEDs (1) Power
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
Certifications CE, FCC, IC

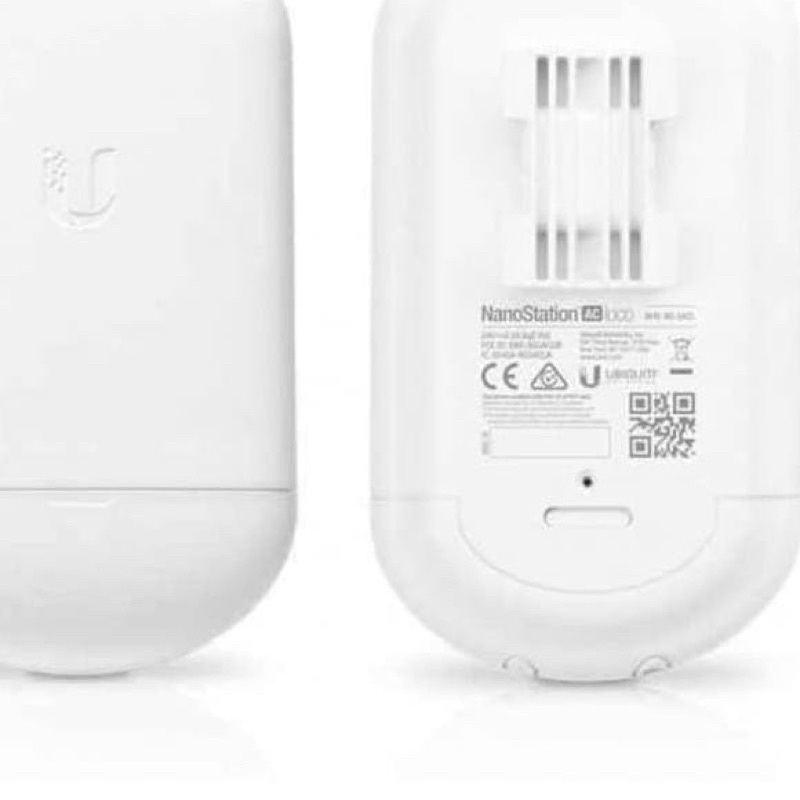

Gambar produk
