Ubiquiti Nano Station M2 / NSM2

Detail Ubiquiti Nano Station M2 / NSM2

GARANSI 1 TAHUN

Spesifikasi :
- Model : NanoStationM
- Processor Specs : Atheros MIPS 24KC, 400 MHz
- Memory : 32 MB SDRAM, 8 MB Flash
- Networking Interface : (2) 10/100 Ethernet Ports
Regulatory/Compliance Information
- Model : NSM5/NSM2/locoM5/locoM2
- Wireless Approvals : FCC Part 15.247, IC RS210, CE
- RoHS Compliance : Yes
Physical/Electrical/Environmental
- Model : NSM2
- Dimensions (mm) : 294 x 31 x 80
- Weight : 0.4 kg
- Power Supply (PoE) : 24V, 0.5A
- Max. Power Consumption : 8 W
- Gain : 11 dBi
- RF Connector : -
- Polarization : Dual Linear
- Enclosure Characteristics : Outdoor UV Stabilized Plastic
- Mounting : Pole Mounting Kit Included
- Power Method : Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
- Operating Temperature : -30 to 75 C
- Operating Humidity : 5 to 95% Condensing
- Shock & Vibration : ETSI300-019-1.4
Operating Frequency Summary (MHz)
- Model : NSM2/locoM2
- Worldwide : 2412-2462
- USA : 2412-2462
- USA DFS : -
Antenna Information
- Gain : 8.5 dBi
- Cross-pol Isolation : 20 dB Minimum
- Max. VSWR : 1.4:1
- Beamwidth : 60 (H-pol) / 60 (V-pol) / 60 (Elevation)

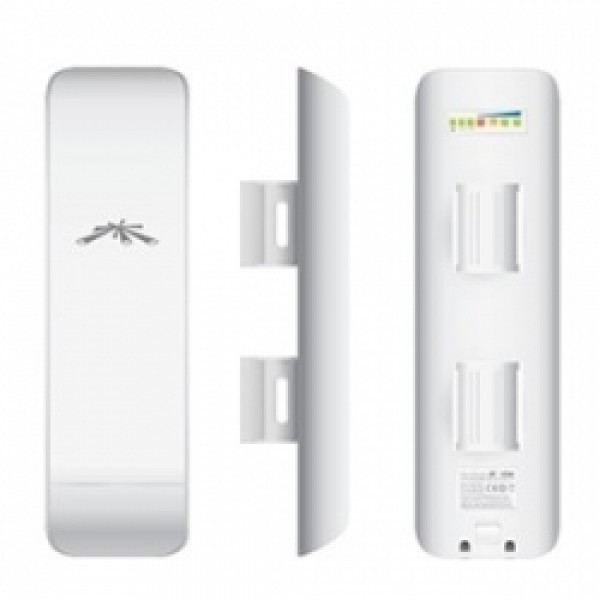

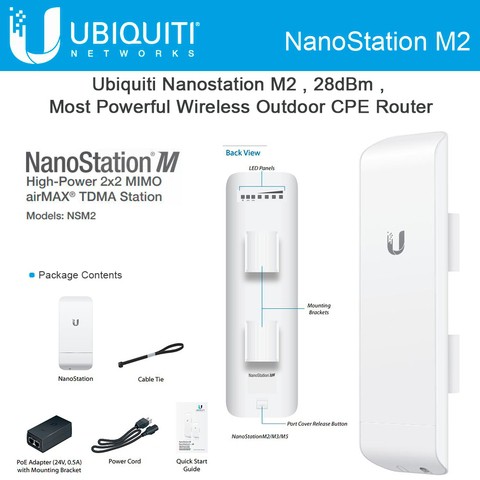

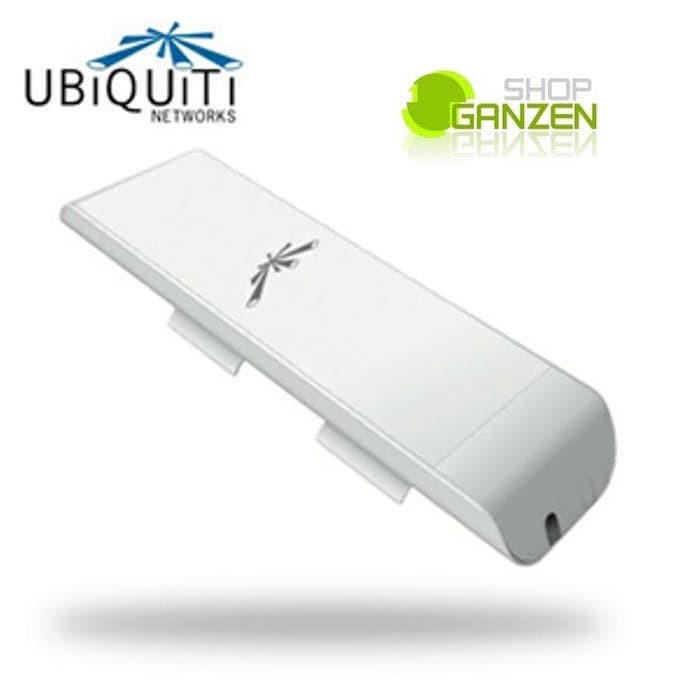

Gambar produk
