Ubiquiti nano station 5ac / NS5AC / NS-5AC / NS 5AC

Detail Ubiquiti nano station 5ac / NS5AC / NS-5AC / NS 5AC

NS-5AC
Dimensions
With Mount
Without Mount
257 x 84 x 30 mm (10.12 x 3.31 x 1.18")
257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
Weight 233 g (8.22) oz
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption 8.5W
Power Method 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain 16 dBi
Networking Interface (2) 10/100/1000 Mbps Ethernet Ports
Channel Bandwidths 10/20/30/40/50/60/80 MHz
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.6:1
Beamwidth 45 (H-pol) / 45 (V-pol) / 45 (Elevation)
Polarization Dual Linear
Enclosure UV Resistant Polycarbonate
LEDs (1) Power, Eth1, Eth2; (1) Signal Strength
Mounting Pole-Mount (Kit Included)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
ESD/EMP Protection 24kV Contact/Air
Shock & Vibration ETSI300-019-1.4
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
USA U-NII-1:
5150 - 5250
U-NII-2A:
5250 - 5350 MHz
U-NII-2C:
5470 - 5725 MHz
U-NII-3:
5725 - 5850
Management Radio (MHz)
Worldwide 2412 - 2472
USA 2412 - 2462
Output Power: 25 dBm
5 GHz TX Power Specifications 5 GHz RX Power Specifications
Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance airMAX ac
1x BPSK (') 25 dBm 2 dB
airMAX ac
1x BPSK (') -96 dBm 2 dB
2x QPSK (') 25 dBm 2 dB 2x QPSK (') -95 dBm 2 dB
2x QPSK (') 25 dBm 2 dB 2x QPSK (') -92 dBm 2 dB
4x 16QAM (') 25 dBm 2 dB 4x 16QAM (') -90 dBm 2 dB
4x 16QAM (') 25 dBm 2 dB 4x 16QAM (') -86 dBm 2 dB
6x 64QAM (2/3) 25 dBm 2 dB 6x 64QAM (2/3) -83 dBm 2 dB
6x 64QAM (') 24 dBm 2 dB 6x 64QAM (') -77 dBm 2 dB
6x 64QAM (5/6) 23 dBm 2 dB 6x 64QAM (5/6) -74 dBm 2 dB
8x 256QAM (') 21 dBm 2 dB 8x 256QAM (') -69 dBm 2 dB
8x 256QAM (5/6) 21 dBm 2 dB 8x 256QAM (5/6) -65 dBm 2 dB

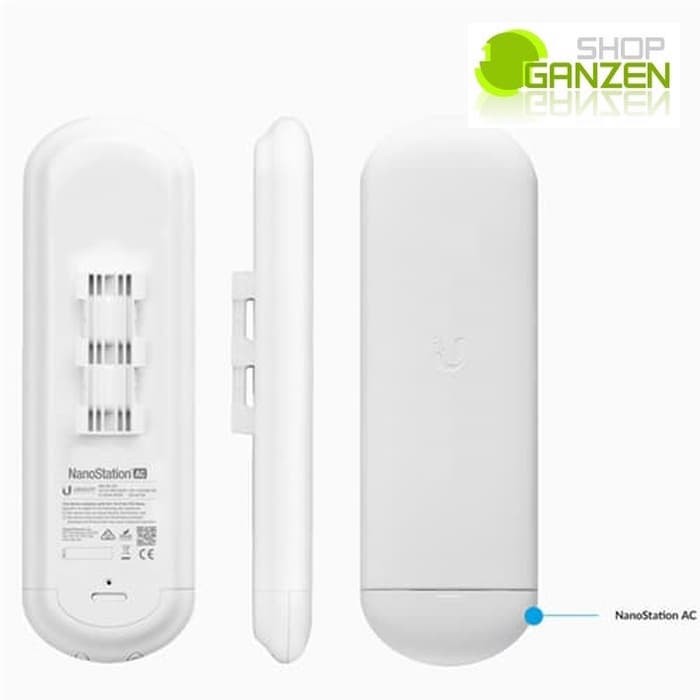

Gambar produk
