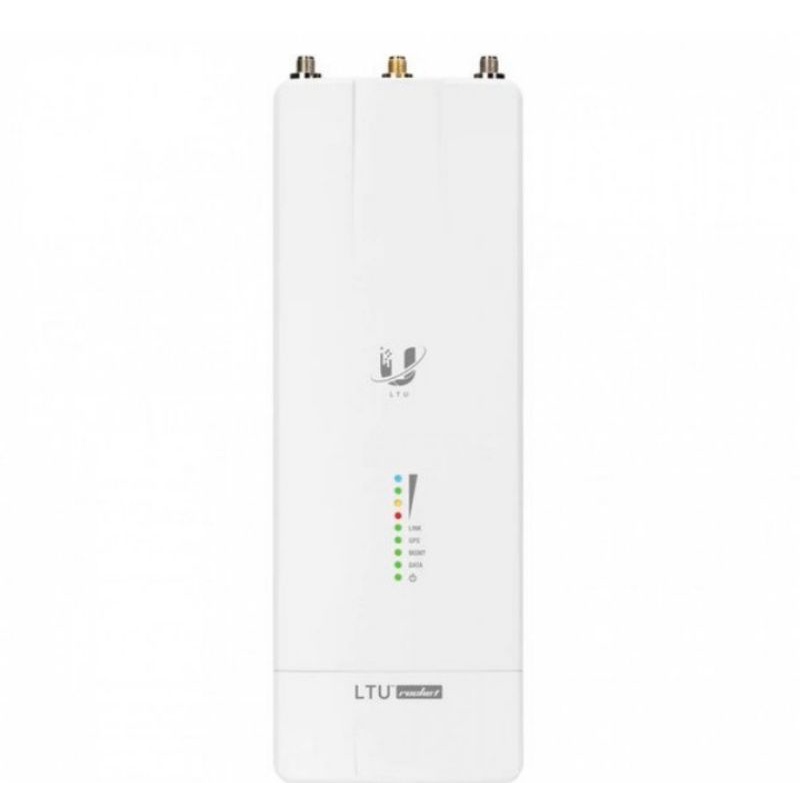

Ubiquiti LTU-ROCKET BaseStation Radio LTU

Detail Ubiquiti LTU-ROCKET BaseStation Radio LTU

Product Specifications
LTU-Rocket
Dimensions 244 x 82 x 48 mm
(9.61 x 3.23 x 1.89")
Weight 0.468 kg
(16.5 oz)
Enclosure Diecast Aluminum and Polycarbonate
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Proprietary 4-Pair Passive PoE
Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-
Max. Power Consumption 15W
Voltage Range +18 to +54VDC*
Networking Interface (1) 10/100/1000 Ethernet Port
Mounting Integrated Pole Mount (Included)
Rocket Mount Compatible
GPS Pole Mount (Included)
Operating Temperature -40 to 55 C
(-40 to 131 F)
Weatherproofing IP672**
Certifications FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
System
Maximum Throughput 675.84 Mbps , *
Maximum Range 100+ km***
Packets per Second 2+ Million
Encryption WPA2-PSK (AES)
Forward Error Correction LDPC
Uplink/Downlink Ratio 25/75, 33/67, 50/50
OS airOS LTU
Wireless Modes AP
Frequency Range MHz
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
EU 5150 - 5875
Worldwide 4900 - 6200
Max. Conducted TX Power 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy < 2 ppm
Channel Bandwidth 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

Full range depends on Ethernet cable length.** After installation of IP67 upgrade kit (included).
Values may vary depending on the environmental conditions.** 1+ Gbps with future firmware upgrade
