LTU LR

LTU-LR-US

5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

Features:
PtMP CPE
1024 QAM
10/20/30/40/50 MHz channel bandwidth
Central configuration management from AP side
Frequency split
Auto power adjustments
Router mode support
Range up to 30km

LTU_LR
Dimensions 512.5 x 385.75 x 258.3 mm
(20.18 x 15.19 x 10.17")
Weight
With Mount 1.360 kg (2.998 lb)
1.735 kg (3.825 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 - 26V
Max. Conducted TX Power 22 dBm (per Chain)
Gain 26 dBi
Mounting Pole-Mount (Kit Included)
Wind Loading 550 N @ 200 km/h
(123.6 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

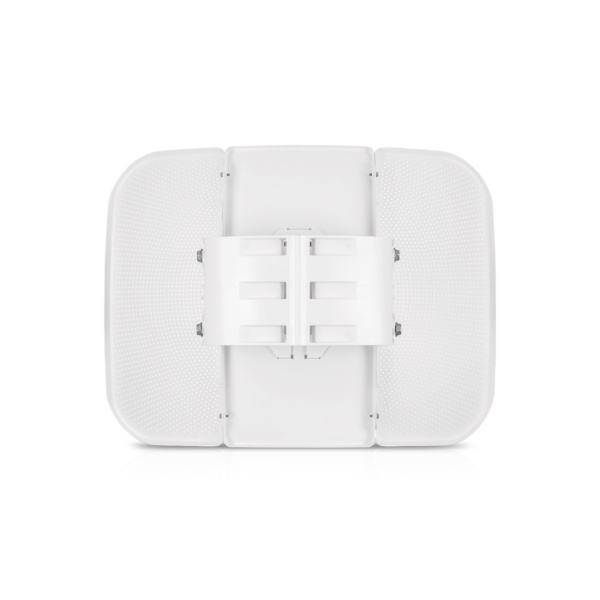

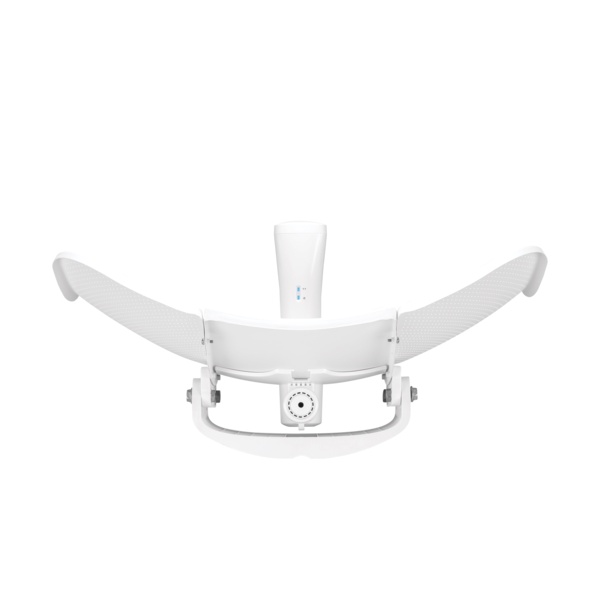

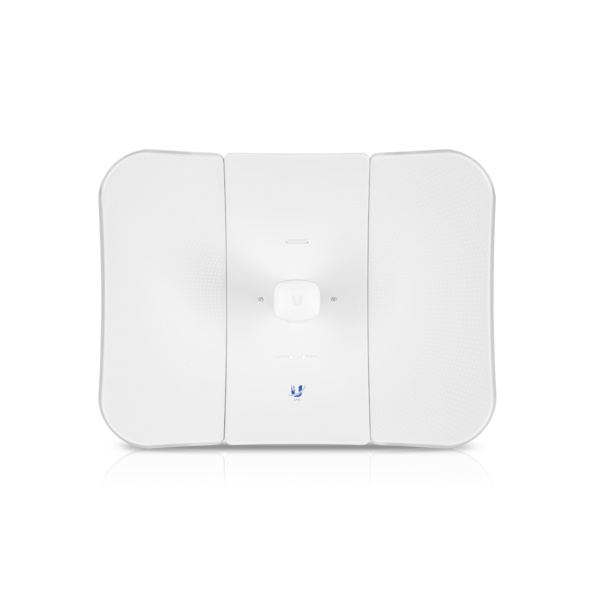

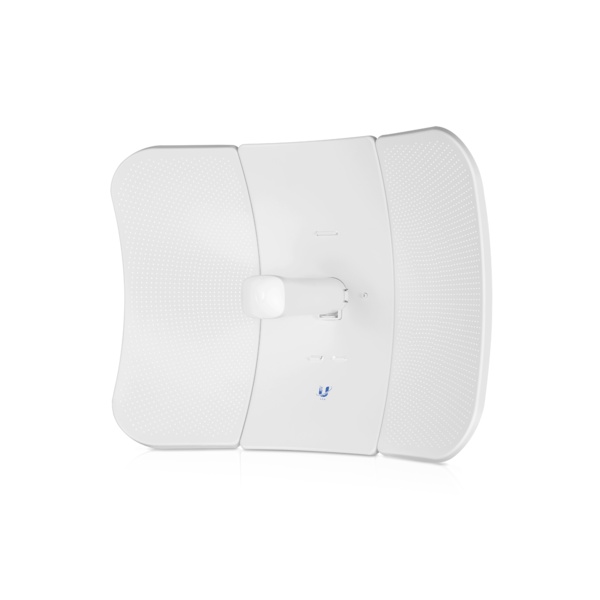

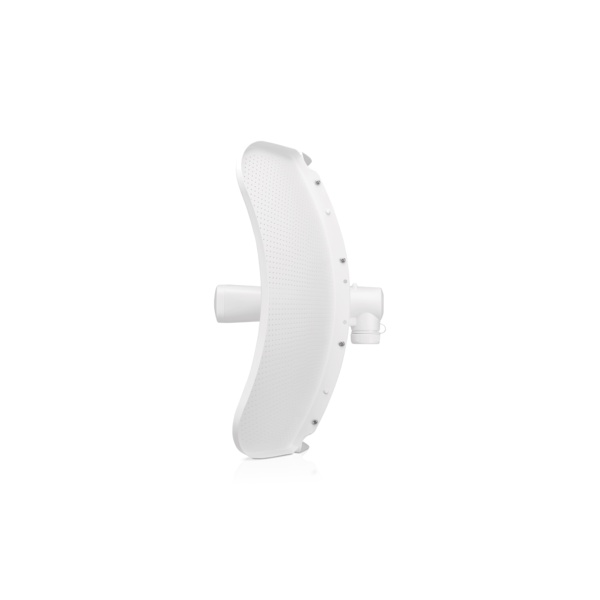

Gambar produk
