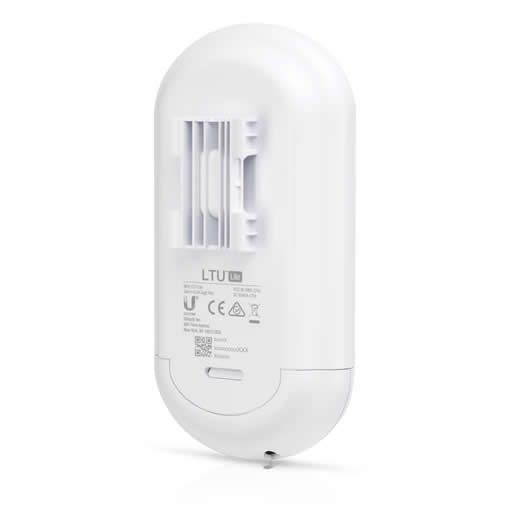

Ubiquiti LTU-Lite 5 GHz PtMP LTU Client

Detail Ubiquiti LTU-Lite 5 GHz PtMP LTU Client

LTU-Lite
Dimensions 153 x 84 x 39.5 mm
(6.02 x 3.31 x 1.56")
Weight 250 g
(8.82 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 - 26V
Max. Conducted TX Power 22 dBm per Chain
Gain 13 dBi
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.8:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual Linear
Mounting Pole-Mount Wall Mount (Kit Included)
Wind Loading 20 N @ 200 km/h
(4.5 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C
(-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2400 - 2483.5*
4800 - 6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
EU 2400 - 2483.5
5150 - 5875
