LTU Rocket
LTU-Rocket
5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients.
Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.
TECHNICAL SPECIFICATIONS Width x Height x Depth: 224 × 82 × 48mm (8.82 × 3.23 × 1.89") Weight: 0.468 kg (1.03 lb) GPS: External, Magnetic Base
Operating Frequency 5150-5250MHz 5740-5850MHz
Power Power Supply: 24V, 1A PoE Gigabit Adapter (Included) Power Method: Dual Passive Power over Ethernet Max. Power Concumption: 25W Supported Voltage Range: +18 to +54VDC*
Networking Interface Data Port: (1) 10/100/1000 Ethernet Port Configuration Port: (1) 10/100/1000 Ethernet Port
System Processor: LTU IC Maximum Throughput: 600 Mbps* Maximum Range: 200+ km** Encryption: 128-bit AES Operating System: airOS F
Radio Frequency Max TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization
Environment Operating Temperature: -40° to 55° C (-40° to 131° F)
Certifications FCC
Mounting airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)

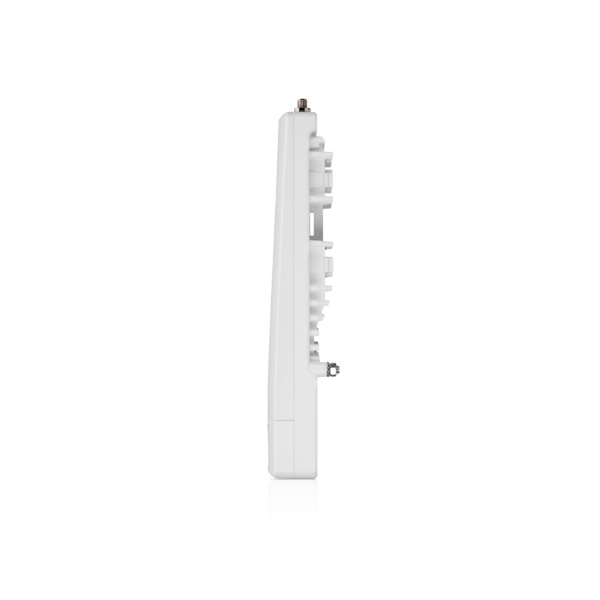

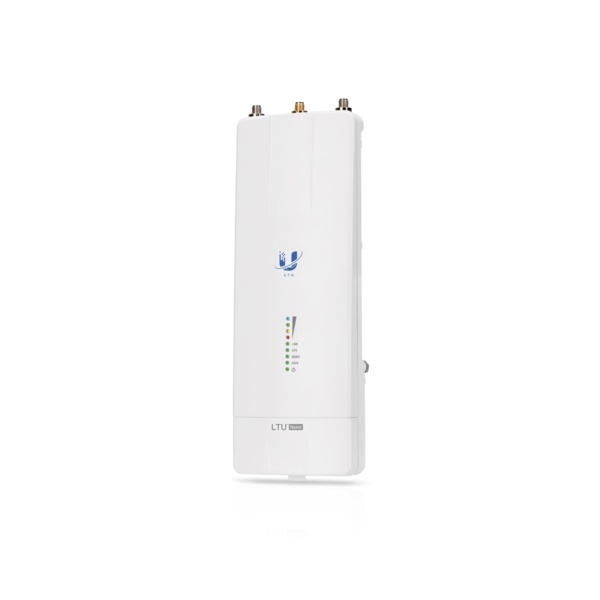

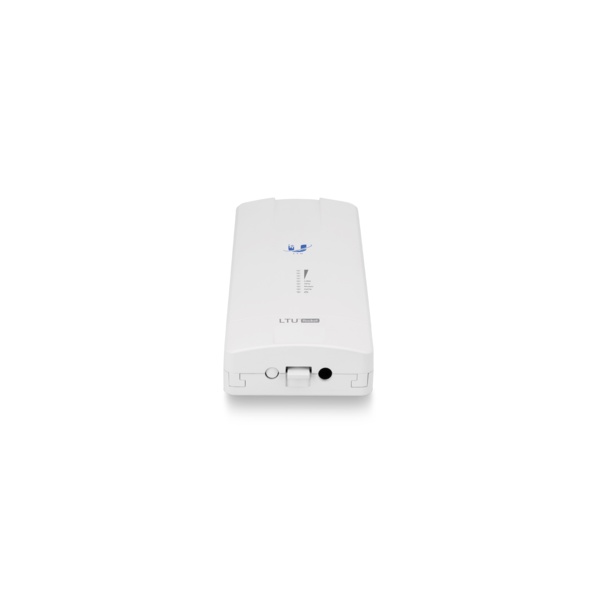

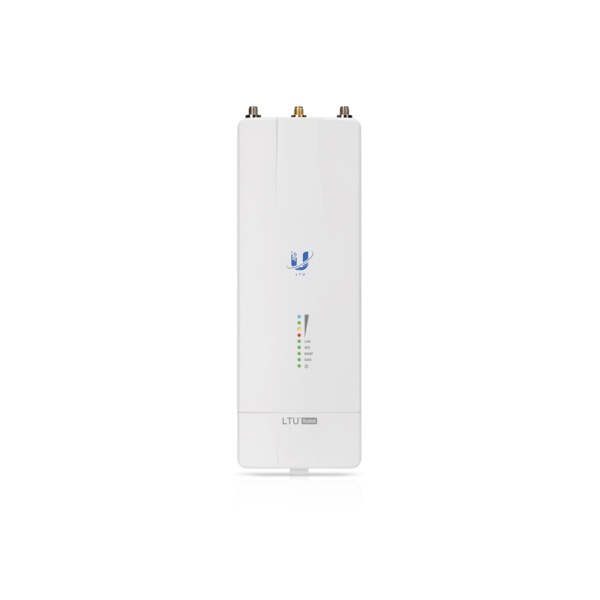

Gambar produk
Ubiquiti LTU BaseStation Radio LTU-RocketUbiquiti LTU BaseStation Radio LTU-RocketUbiquiti LTU BaseStation Radio LTU-RocketUbiquiti LTU BaseStation Radio LTU-Rocket
