Ubiquiti Litebeam AC - LBE-5AC-23

Detail Ubiquiti Litebeam AC - LBE-5AC-23

Garansi resmi 1 Tahun !!

MODEL BARU GEN.2 !!


2x2 MIMO airMAX ac CPE
The LiteBeam ac is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam ac provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam ac fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.

Spesification :
362 x 267 x 184 mm
(14.25 x 10.51 x 7.24")
Wind Survivability 200 km/h (125 mph)
Wind Loading 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 4W
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection 24 KV Contact / Air
System Information
Processor Specs MIPS 74K
Memory 64 MB
Networking Interface (1) 10/100 Ethernet Port
Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Antenna Information
Operating Frequency
Worldwide: 5150 - 5875 MHz
Output Power 25 dBm
Gain 23 dBi
Max. VSWR 1.5:1

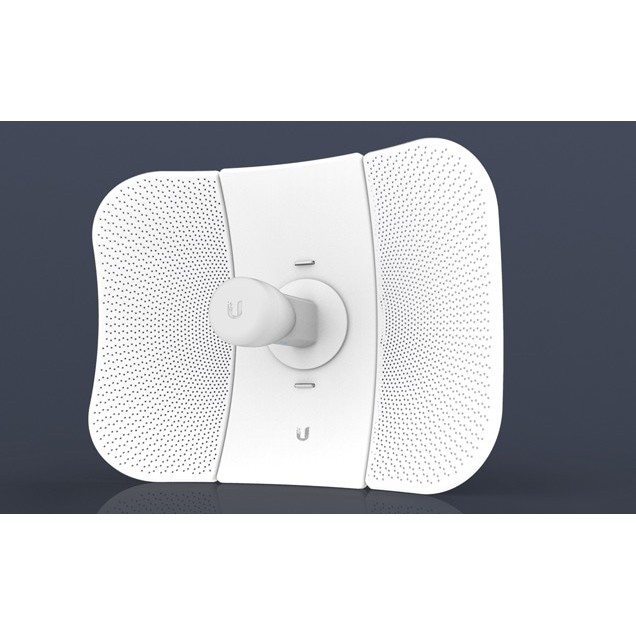

Gambar produk
