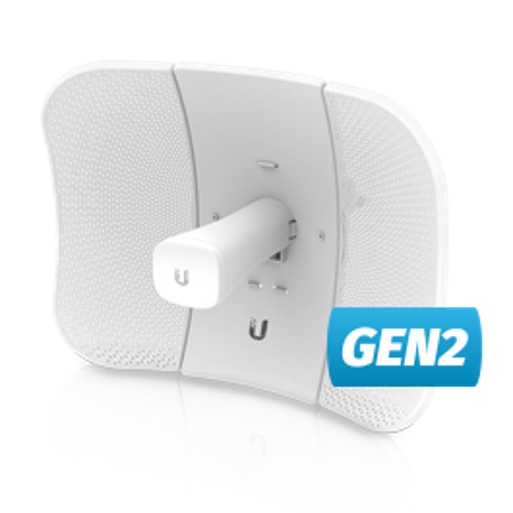

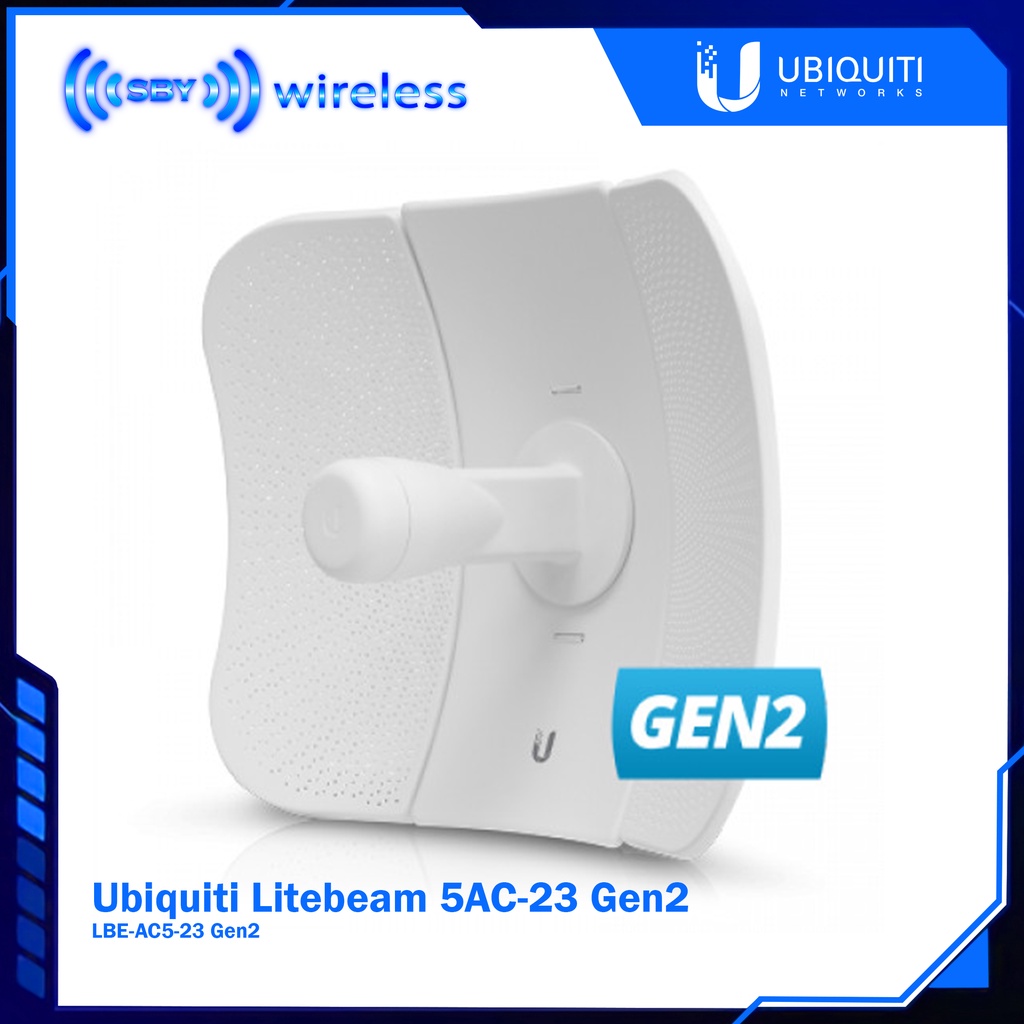

Ubiquiti Litebeam 5AC-23 Gen2

Detail Ubiquiti Litebeam 5AC-23 Gen2

LiteBeam 5AC Gen2 features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.

Specifications : LBE-5AC-Gen2
Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Gain 23 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz):
Worldwide 5150 - 5875
US/CA U-NII-1:5150 - 5250
U-NII-2A:5250 - 5350 MHz
U-NII-2C:5470 - 5725 MHz
U-NII-3:5725 - 5850

Product Includes:
(1) Antenna Feed
(1) Central Reflector Panel
(2) Side Reflector Panels
(1) Feed Receiver
(1) Azimuth Mount
(1) Elevation Mount
(1) Metal Strap
(1) Knob Kit
(1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
(1) Power Cord
(1) Quick Start Guide
