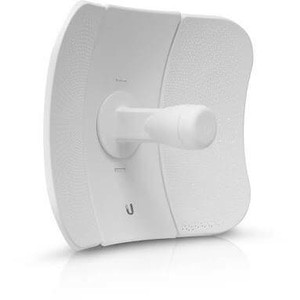

Ubiquiti LBE-5AC-Gen2 Litebeam 5AC

Detail Ubiquiti LBE-5AC-Gen2 Litebeam 5AC

Overview Of Ubiquiti Litebeam Ac Lbe-5ac-23 - White

Spesification :362 x 267 x 184 mm
(14.25 x 10.51 x 7.24")

Wind Survivability 200 km/h (125 mph)
Wind Loading 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 4W
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection 24 KV Contact / Air


System Information
Processor Specs MIPS 74K
Memory 64 MB
Networking Interface (1) 10/100 Ethernet Port


Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes


Antenna Information
Operating Frequency
Worldwide: 5150 - 5875 MHz

USA: 5725 - 5850 MHz

Output Power 25 dBm
Gain 23 dBi
Max. VSWR 1.5:1
Now with airOS7 and airView
airOS7 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.


High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam ac provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.


Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam ac fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.


Compact in Size, Light in Weight
A lightweight form factor contained
