UBIQUITI LAP-120 LITEBEAM SECTORAL NETWORK

Detail UBIQUITI LAP-120 LITEBEAM SECTORAL NETWORK

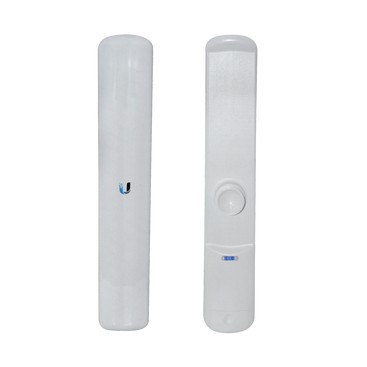

Ubiquiti Networks LiteBeam Sectoral (LBE-5AC-16-120)

The LiteBeam is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, licensefree 5 GHz frequency range with high -performance speeds.

The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with costeffective value.

Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX
Time Division Multiple Access (TDMA) protocol allows each client to send
and receive data using pre-designated time slots managed by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency.

Specifications:
~ Dimensions 452.3 x 78.7 x 54.4mm
~ Wind Survivability 200 km/h
~ Wind Loading 77 N @ 200 km/h
~ Pole Mounting Kit (Included)
~ Max. Power Consumption 7W
~ PS. 24V, 0.5A Gigabit PoE Adapter (Included)
~ Passive PoE (Pairs 4, 5+; 7, 8 Return)
~ Operating Temp. -40 .. 70C
~ Operating Humidity 5 to 95% Noncondensing
~ Shock and Vibration ETSI300-019-1.4
~ ETSI Specification EN 302 326 DN2
~ ESD/EMP Protection 24 KV Contact / Air

System Information:
~ Processor MIPS 74K
~ Memory 64MB
~ 1x 10/100/1000 Ethernet Port

Antenna Information:
~ Frequency Range : 5150 - 5875MHz
~ Output Power 25dBm
~ Gain 16dBi
~ Max. VSWR 1.5:1
