Ubiquiti F-POE-G2 Fiber POE Gen2 Optical Data Transport Outdoor

Detail Ubiquiti F-POE-G2 Fiber POE Gen2 Optical Data Transport Outdoor

Deskripsi : Ubiquiti F POE G2 Fiber POE Gen2 Optical Data Transport Outdoor

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Specifications F-POE-G2
Dimensions (Excluding Mount) 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")
Weight 288 g (10.2 oz)
Enclosure White Polycarbonate

Interface Connections (1) 1 Gbps SFP Port
(1) DC Terminal Block
(1) RJ45 Port, 2-Pair or 4-Pair DC Injection
(1) 1 Gbps1
Ethernet PoE Port,
2-Pair (24VDC Input) or
4-Pair (24 or 50VDC Input) PoE Passthrough

PoE Polarity
2-Pair (24 or 50VDC)
4-Pair (50VDC)
Pins 4, 5 (+); 7, 8 (-)
Pins 1, 2, 4, 5 (+); 3, 6, 7, 8 (-)

Power Method DC Injection From:
RJ45 DC In Port, 2-Pair or 4-Pair PoE Capability
RJ45 PoE Port, 2-Pair or 4-Pair PoE Capability
DC Terminal Block

PoE Output (RJ45 PoE Port)
2-Pair or 4-Pair (24VDC Input), or
4-Pair (50VDC Input) Passthrough
DC Output (Terminal Block)
24 or 50VDC (DC In or PoE Port Input)
Input DC Voltage 16 to 57V
Typical Power Consumption 1.5W
Surge Protection Built-In High-Current Gas Discharge Tube
Operating Temperature 2 -40 to 60° C (-40 to 140° F)
Operating Humidity 10 to 95% Noncondensing
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Certifications CE, FCC, IC

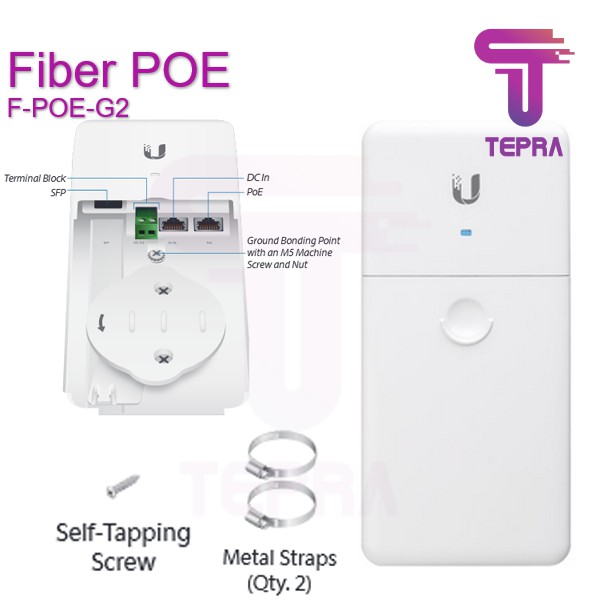

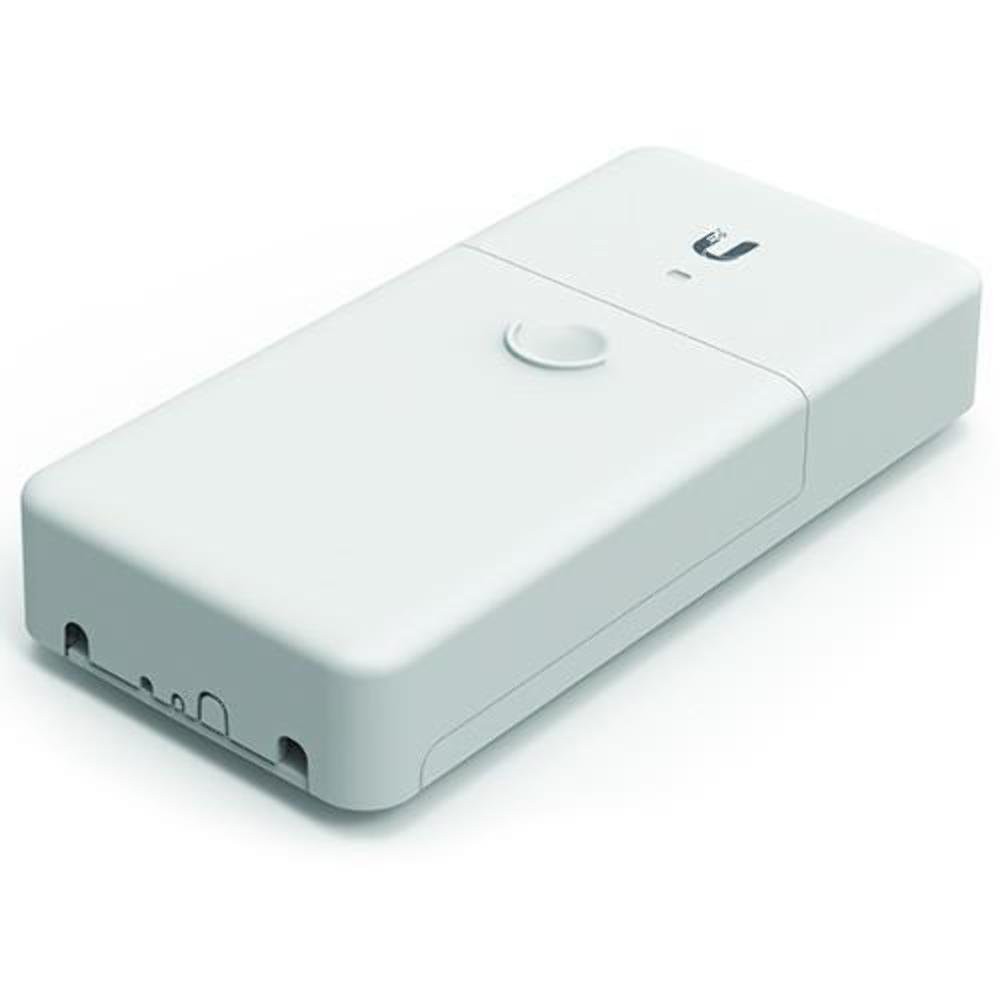

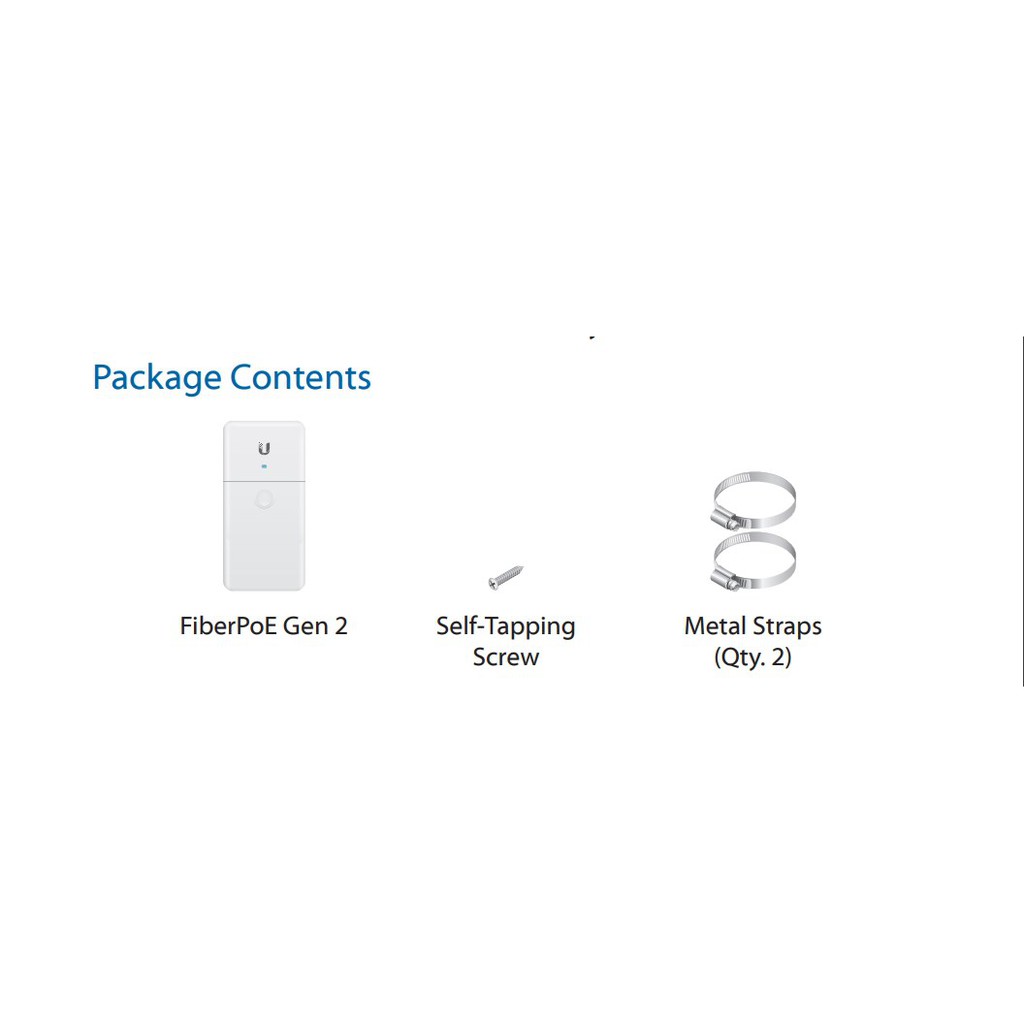

Gambar produk
