Ubiquiti ETH-SP-GEN2

Detail Ubiquiti ETH-SP-GEN2

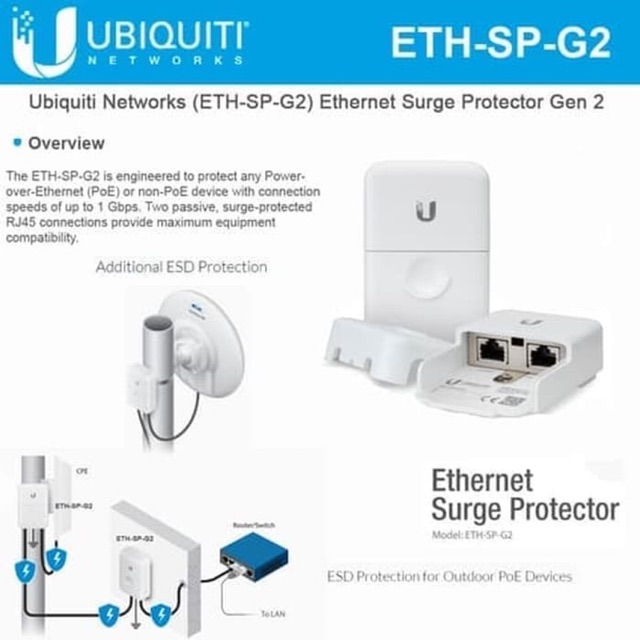

The Ethernet Surge Protector is a cost-effective solution for protecting sensitive, 3rd party Ethernet devices from damaging electrostatic discharges and surges. Since all Ubiquiti airMAX® devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network.

The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Features:
• Compatible with Gigabit Networks
• Additional ESD Protection
• Plug and Play Installation

Product Specifications
• Dimensions: 91 x 61 x 32.5mm (3.58 x 2.4 x 1.28")
• Weight: 80g (2.82oz)
• Interface Connections: (2) RJ45 Female Connectors
• ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/us
• DC Spark-Over Voltage: 90V @ 100V/s
• Maximum Impulse Spark-Over Voltage: 700V @ 1kV/us
• Discharge Current: 5kA (maximum) / 0.5kA (normal)
• Maximum Insulation Resistance: 1GΩ @ 50V
• Maximum Capacitance: 1.0pF @ 1MHz
• Data Line Protection: RJ45 10/100/1000 Ethernet
• IEEE 802.3af PoE Support: Yes
• Shock and Vibration Certification: ETSI300-019-1.4 Standard
• Operating Temperature: -30 to 65°C (-22 to 149°F)
• Operating Humidity: 10 to 90% non-condensing

Included Accessories:
• M5 Self-Tapping Screw
• M5 Serrated Washer
• Quick Start Guide
