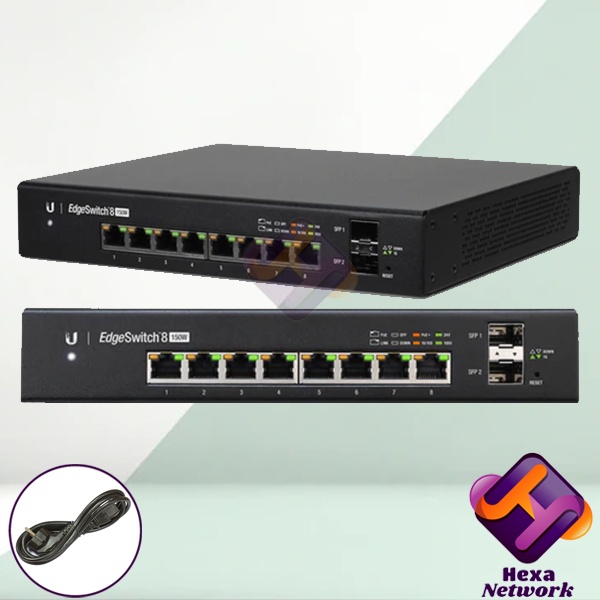

Ubiquiti ES-8-150W Edge Switch Managed PoE+ Gigabit 8Port 150Watt

Detail Ubiquiti ES-8-150W Edge Switch Managed PoE+ Gigabit 8Port 150Watt

Deskripsi : Ubiquiti ES 8 150W Edge Switch 8 Port Gigabit 150 Watt

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Specifications ES-8-150W
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight
Without Wall Mount 1.72 kg (3.79 lb)
With Wall Mount 1.8 kg (3.96 lb)
Total Non-Blocking Line Rate 10 Gbps
Max. Power Consumption 20W (Excludes PoE Output)
Power Method
AC AC/DC Integrated PSU, Universal Input
DC DC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply Internal AC/DC 150W
Operating Voltage
AC 100 to 240VAC, 50-60 Hz
DC 42 to 56VDC
LEDs
System Status
RJ45 Data Ports PoE; Link/Speed/Activity
SFP Data Ports Link/Speed/Activity
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
PoE Interfaces (8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6) (8) 24V/0.7A 2-Pair (+4, 5; -7, 8)
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Operating Temperature
Internal AC/DC @ 150W -25 to 45° C (-13 to 113° F)
Internal AC/DC @ 100W -25 to 55° C (-13 to 131° F)
External DC -25 to 60° C (-13 to 140° F)
Operating Humidity 5 to 95% Non condensing
Certifications CE, FCC, IC

Gambar produk
