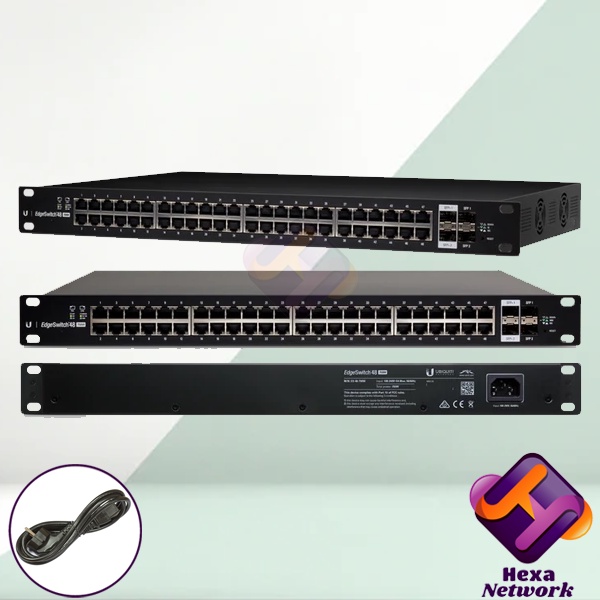

Ubiquiti ES-48-750W Edge Switch PoE+ Gigabit 48 Port (750W)

Detail Ubiquiti ES-48-750W Edge Switch PoE+ Gigabit 48 Port (750W)

Ubiquiti ES-48-750W (Edge Switch Managed PoE+ Gigabit 48 RJ45 Port 750W Switch with SFP+ Ports)

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Model: ES-48-750W
• (48) Gigabit RJ45 Ports
• (2) SFP+ Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Maximum Power Consumption: 750W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. Power Consumption ES-48-500W :
Includes PoE Output 750W
Excludes PoE Output 64W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply ES-48-750W
AC/DC, Internal, 750W DC
LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports
PoE, Speed/Link/Activity Speed/Link/Activity

Networking Interfaces :
(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports

PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Gambar produk
