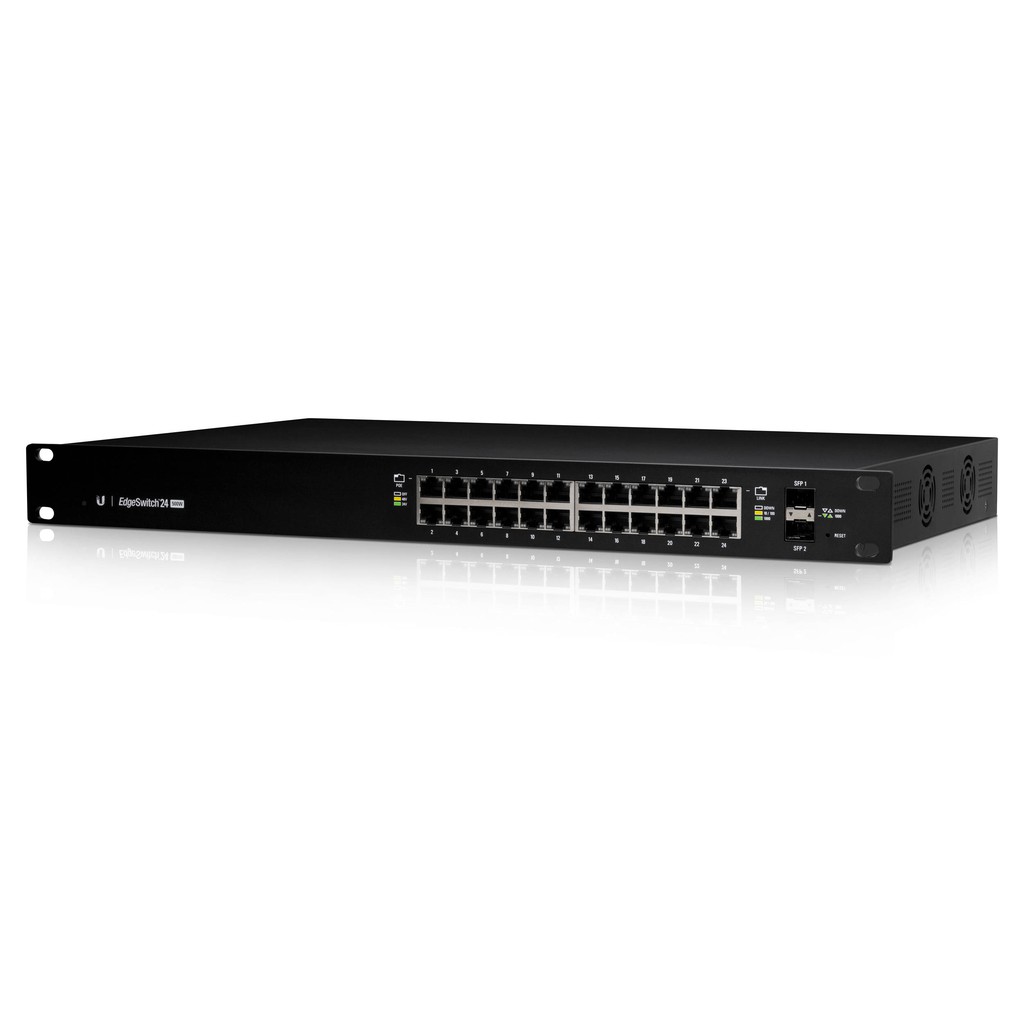

Ubiquiti ES-24-500W Edge Switch Managed PoE+ Gigabit 24Port 500Watt

Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti Networks
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > Ubiquiti ES-24-500W Edge Switch Managed PoE+ Gigabit 24Port 500Watt
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Ubiquiti ES-24-500W Edge Switch Managed PoE+ Gigabit 24Port 500Watt

Deskripsi : Ubiquiti ES 24 500W EdgeSwitch 24Port 500W

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

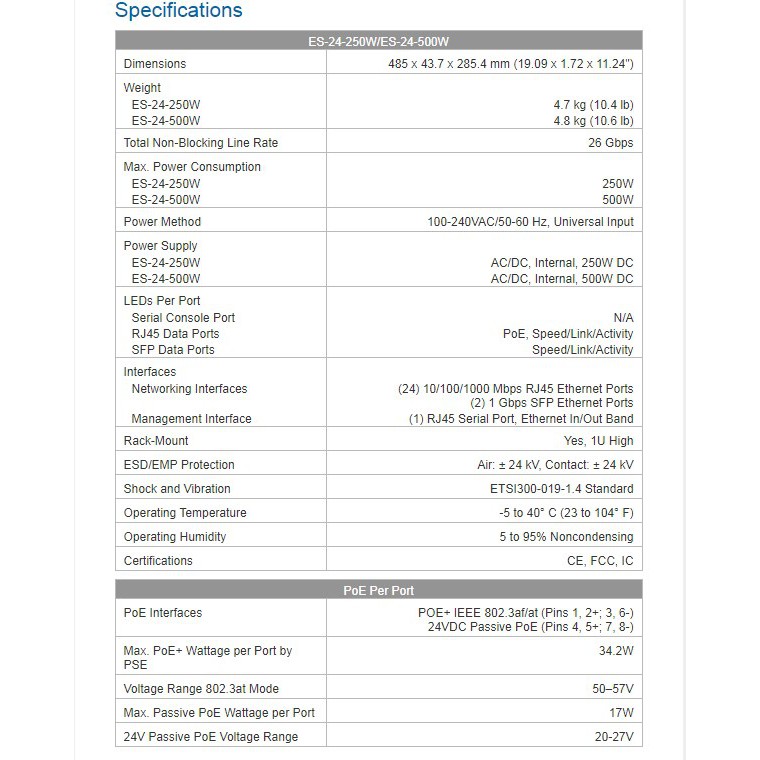

Specifications ES-24-250W/ES-24-500W
Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
Weight
ES-24-250W 4.7 kg (10.4 lb)
ES-24-500W 4.8 kg (10.6 lb)
Total Non-Blocking Line Rate 26 Gbps
Max. Power Consumption
ES-24-250W 250W
ES-24-500W 500W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply
ES-24-250W AC/DC, Internal, 250W DC
ES-24-500W AC/DC, Internal, 500W DC
LEDs Per Port
Serial Console Port N/A
RJ45 Data Ports PoE, Speed/Link/Activity
SFP Data Ports Speed/Link/Activity
Interfaces
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface 1) RJ45 Serial Port, Ethernet In/Out Band
Rack-Mount Yes, 1U High
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Non condensing
Certifications CE, FCC, IC

PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
