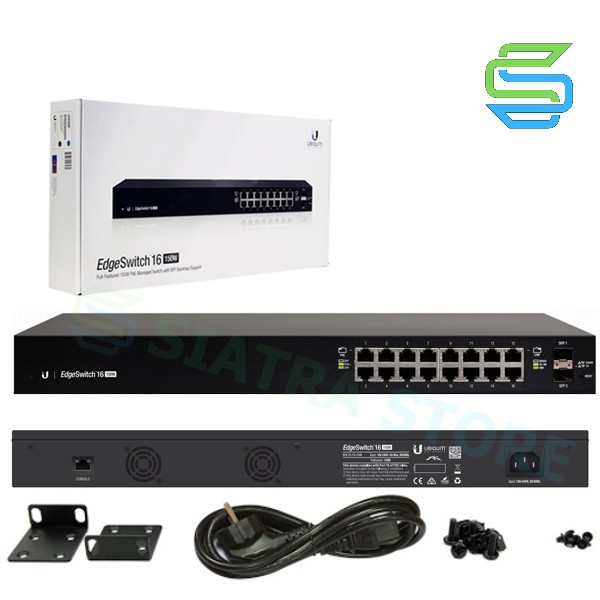

Ubiquiti ES-16-150W Edge Switch Managed PoE+ Gigabit 16Port 150Watt

Detail Ubiquiti ES-16-150W Edge Switch Managed PoE+ Gigabit 16Port 150Watt

Deskripsi : Ubiquiti ES 16 150W EdgeSwitch 16Port 150Watt

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

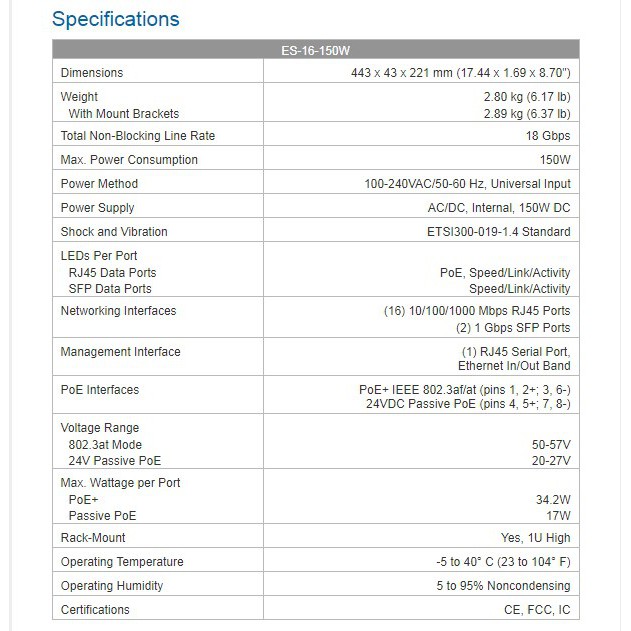

Specifications ES-16-150W
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight 2.80 kg (6.17 lb)
With Mount Brackets 2.89 kg (6.37 lb)
Total Non-Blocking Line Rate 18 Gbps
Max. Power Consumptions 150W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Shock and Vibration ETSI300-019-1.4 Standard
LEDs Per Port
RJ45 Data Ports PoE, Speed/Link/Activity
SFP Data Ports Speed/Link/Activity
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
PoE Interfaces PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) 24VDC Passive PoE (pins 4, 5+; 7, 8-)
Voltage Range
802.3at Mode 50-57V
24V Passive PoE 20-27V
Max. Wattage per Port
PoE+ 34.2W
Passive PoE 17W
Rack-Mount Yes, 1U High
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Non condensing
Certifications CE, FCC, IC
