Ubiquiti ES-12F Edge Switch 12Port Fiber

Detail Ubiquiti ES-12F Edge Switch 12Port Fiber

Deskripsi : Ubiquiti ES 12F EdgeSwitch 12Port Fiber

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Specifications ES-12F
Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight
Rack-Mount Brackets Included 2.68 kg (5.91 lb)
Rack-Mount Brackets Excluded 2.59 kg (5.71 lb)
Total Non-Blocking Line Rate 16 Gbps
Max. AC Power Consumption 56W
Power Method
AC 100-240VAC/50-60 Hz, Universal Input
DC DC 56W, 25 to 16V, with 2.5 mm
DC Power Inline Connector
Power Supply AC/DC, Internal, 56W DC
Supported Voltage Range 100 to 240VAC 25 to 16VDC
LEDs Per Data Port
Speed/Link/Activity
Interfaces
Networking Interfaces (8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Rackmount Yes, 1U High
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Non condensing
Certifications CE, FCC, IC

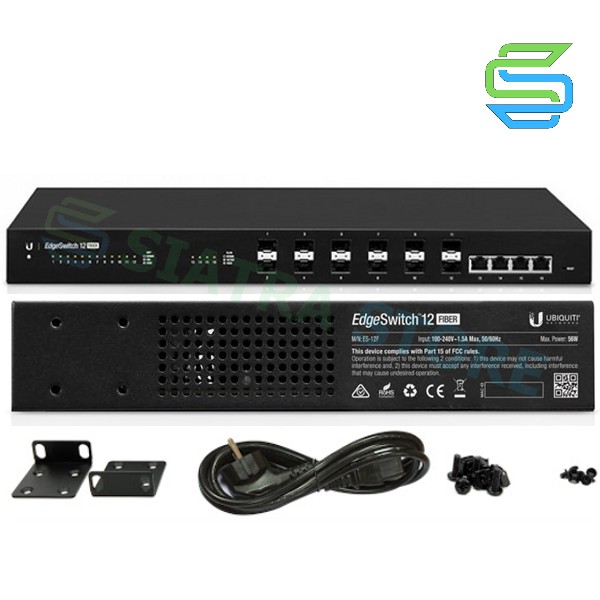

Gambar produk
