Detail Ubiquiti ER-X-SFP Edge Router Gigabit and SFP

Deskripsi : Ubiquiti ER X SFP Edge Router X SFP

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Hardware Specifications

Dimensions : 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
Weight : 215 g (7.58 oz)
Max. Power Consumption : 5W
Max. Total PoE Output : 50W @ 24V
PoE Output Passive : 24V (Pins 4, 5+; 7, 8-)
Power Input : 24VDC, 2.5A Power Adapter (Included)
Power Supply : External AC/DC Adapter
Supported Voltage Range : 9 to 26VDC
Button : Reset
LED : Power, Link/Activity (6), PoE (5)
Processor : Dual-Core 880 MHz, MIPS1004Kc
System Memory : 256 MB DDR3 RAM
Code Storage : 256 MB NAND
Certifications : CE, FCC, IC
Wall-Mount : Yes
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -10 to 45° C (14 to 113° F)
Operating Humidity : 10 to 90% Non condensing

Networking Interfaces

Data/PoE Output Port : (5) 10/100/1000 RJ45 Ports
Data Port : (1) 100/1000 SFP Port

PoE with 24VDC Power Adapter

PoE Out Voltage Range : 22-24VDC
Max. PoE Wattage Per Data/PoE Output Port : 12W (24V)
Max. PoE Wattage Combined (All 5 Data Ports) : 50W
PoE Method : Passive


Software Specifications
EdgeOS
Interface/Encapsulation :
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
Addressing :
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
Routing :
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
Security :
ACL-Based Firewall
Zone-Based Firewall

Gambar produk

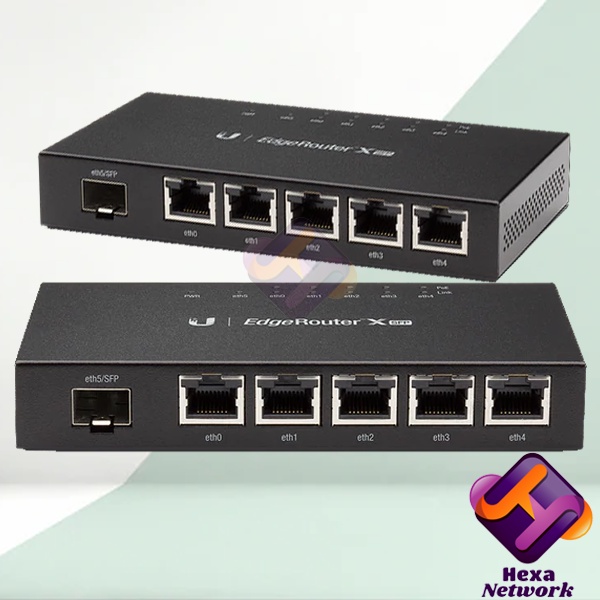

Ubiquiti ER-X-SFP Edge Router Gigabit and SFP
