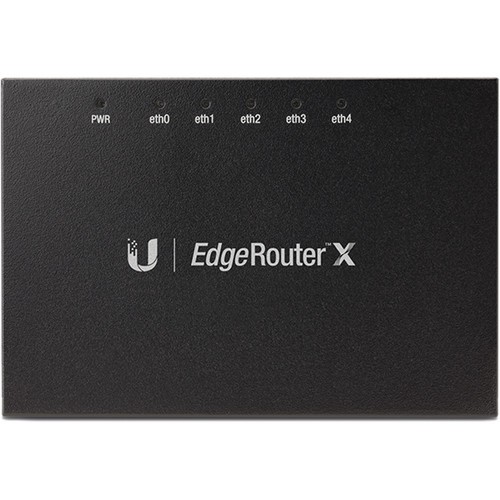

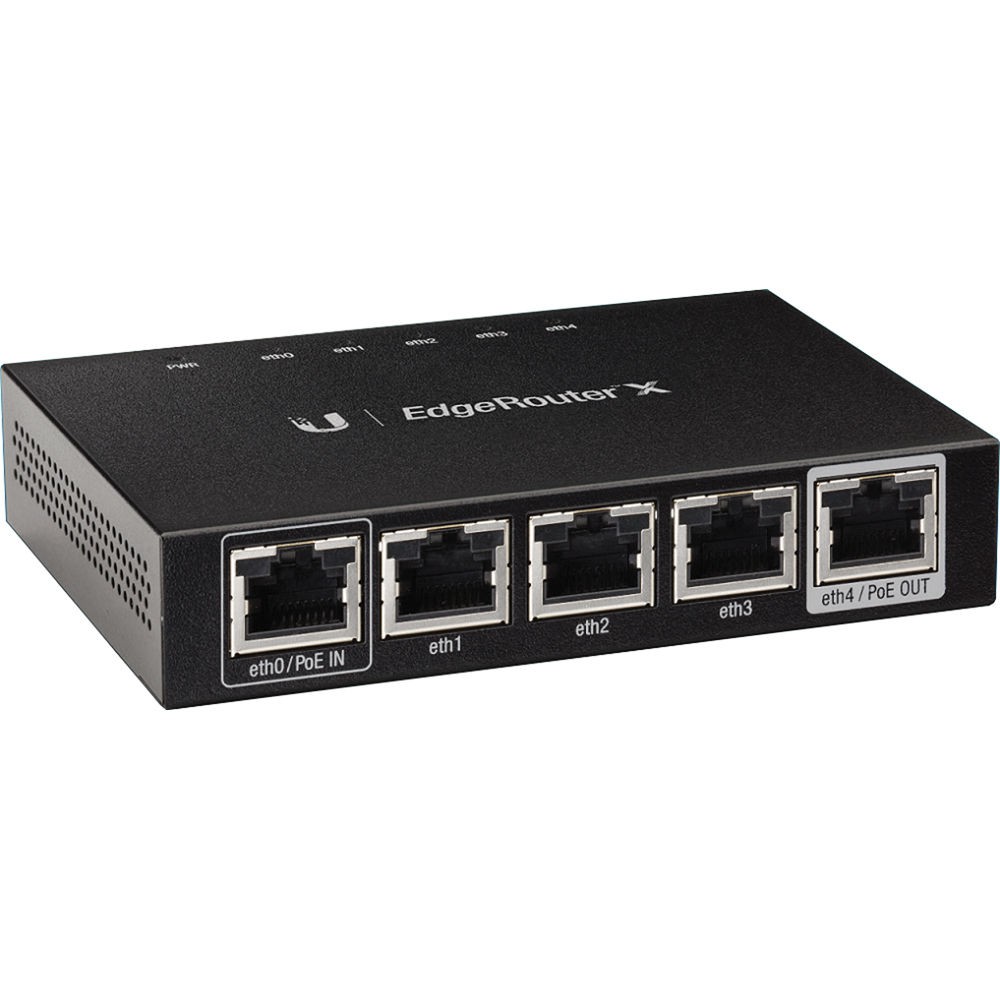

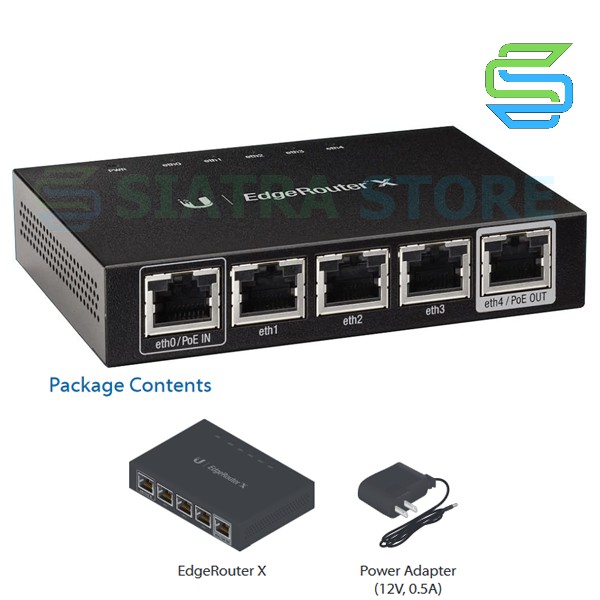

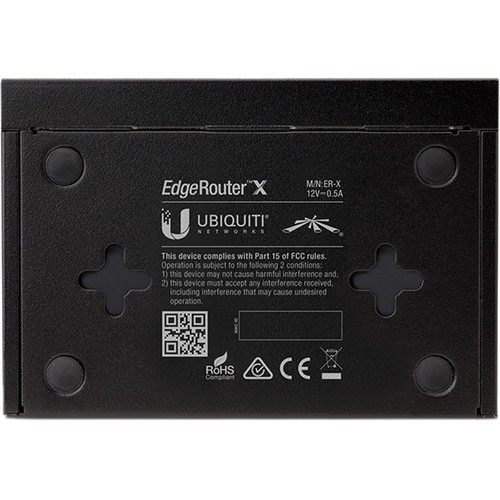

Ubiquiti ER-X Edge Router Gigabit Ethernet

Detail Ubiquiti ER-X Edge Router Gigabit Ethernet

Deskripsi : Ubiquiti ER X Edge Router X
Hardware Specifications

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Dimensions : 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
Weight : 175 g (6.17 oz)
Max. Power Consumption : 5W
Power Input : 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply : External AC/DC Adapter
Supported Voltage Range : 9 to 26VDC

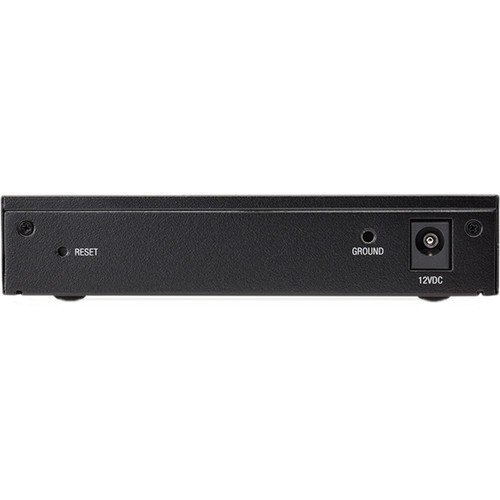

Button : Reset
LED : Power, Ethernet 0-4
Processor : Dual-Core 880 MHz, MIPS1004Kc
System Memory : 256 MB DDR3 RAM
Code Storage : 256 MB NAND
Certifications : CE, FCC, IC
Wall-Mount : Yes
ESD/EMP : Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -10 to 45° C (14 to 113° F)
Operating Humidity : 10 to 90% Non condensing

Networking Interfaces

Data/PoE : Input Port (1) 10/100/1000 RJ45 Port
Data Ports : (3) 10/100/1000 RJ45 Ports
Data/PoE : Passthrough Port (1) 10/100/1000 RJ45 Port

Software Specifications
EdgeOS
Interface/Encapsulation :
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
Addressing :
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
Routing :
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
Security :
ACL-Based Firewall
Zone-Based Firewall
NAT
VPN :
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
Services
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
QoS :
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
Management :
Web UI
CLI (SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging
