Ubiquiti ER-12 Edge Router 10Port + 2Port SFP Gigabit

Detail Ubiquiti ER-12 Edge Router 10Port + 2Port SFP Gigabit

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

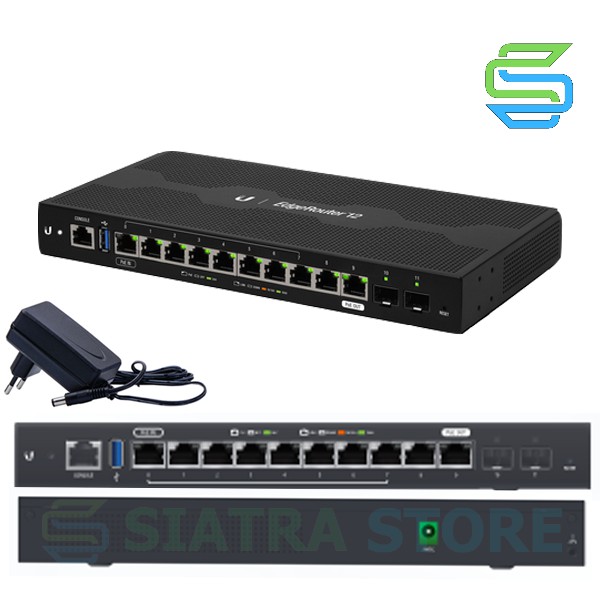

EdgeRouter 12 (Model: ER-12)
Dimensions : 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight : 700 g (1.54 lb)
Max. Power Consumption : 20W (Excludes PoE Output)
Power Method : External AC/DC Power Adapter, 24W (24V, 1A) (Included) 24V Passive PoE
Power Supply : External AC/DC Adapter
Supported Voltage Range
DC : 9 - 30VDC
24V Passive PoE : 20 - 30V
Button : Reset
LEDs
Data Ports : Speed/Link/Activity, PoE (Port 9 Only)
SFP Data Port : Link/Activity
Networking Interfaces
Management : (1) RJ45 Serial Port (10) Ethernet Ports (Default Port 0)
Networking :(10) 10/100/1000 RJ45 Ports (2) 1 Gbps SFP Ports
Layer 3 Forwarding Performance
Packet Size: 64 Bytes : 3,400,000 pps
Packet Size: 1518 Bytes or Larger : 6.8 Gbps (Line Rate)
Processor : 4-Core 1 GHz, MIPS64
System Memory : 1 GB DDR3 RAM
On-Board Flash Storage : 4 GB eMMC, 8 MB SPI NOR
Mounting : Wall, Rack*
Operating Temperature : -10 to 50° C (14 to 122° F)
Operating Humidity : 10 - 90% Non condensing
Certifications : CE, FCC, IC
* With optional Rack Mount Kit, model ER-RMKIT

PoE
PoE Interfaces
PoE In : (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out : (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port : 20W (24V, 0.83A)
Passive PoE Output : DC/PoE Passthrough
