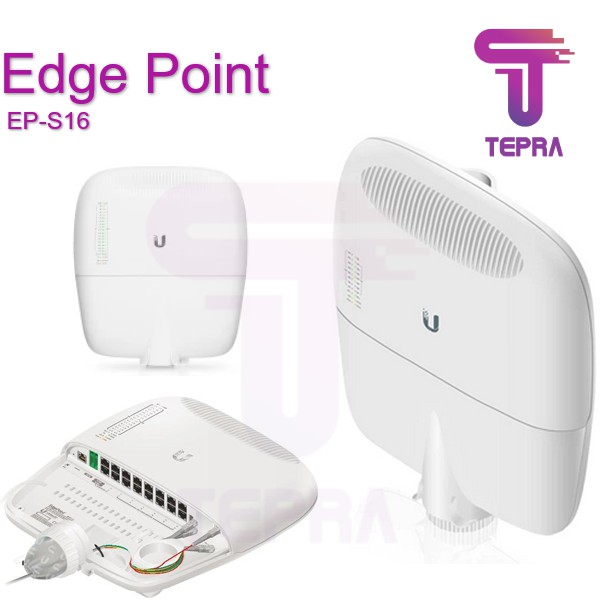

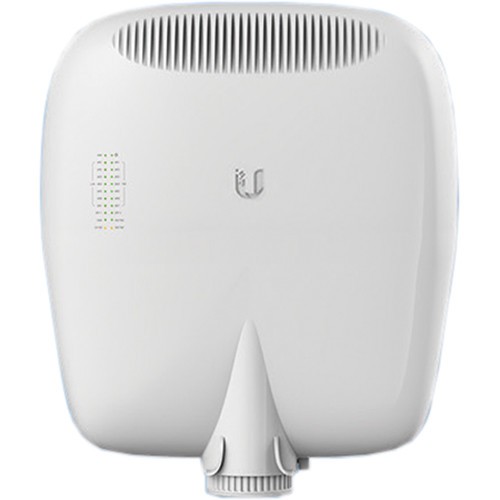

Ubiquiti EP-S16 Edge Point 16Port Gigabit PoE Outdoor

Detail Ubiquiti EP-S16 Edge Point 16Port Gigabit PoE Outdoor

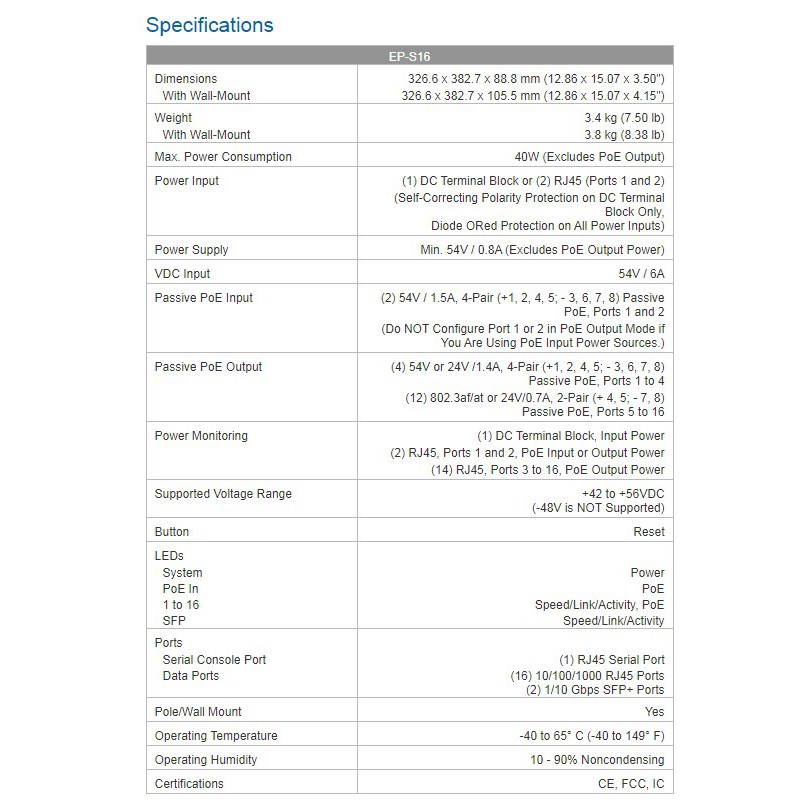

Specifications EP-S16

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Dimensions : 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
With Wall-Mount : 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight : 3.4 kg (7.50 lb)
With Wall-Mount : 3.8 kg (8.38 lb)
Max. Power Consumption : 40W (Excludes PoE Output)
Power Input : (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply : Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input : 54V / 6A
Passive PoE Input : (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output : (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16
Power Monitoring : (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range : +42 to +56VDC (-48V is NOT Supported)
Button : Reset
LEDs
System : Power
PoE In PoE
1 to 16 Speed/Link/Activity, PoE
SFP Speed/Link/Activity
Ports
Serial Console Port : (1) RJ45 Serial Port
Data Ports : (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports
Pole/Wall Mount : Yes
Operating Temperature : -40 to 65° C (-40 to 149° F)
Operating Humidity : 10 - 90% Non condensing
Certifications : CE, FCC, IC
