Ubiquiti EdgeMAX Routing ER-12 EdgeRouter 12

Detail Ubiquiti EdgeMAX Routing ER-12 EdgeRouter 12

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

EdgeRouter 12

ER-12

High-performance router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports.

The EdgeRouter 12 is a high-performance Gigabit Router with PoE flexibility. With increased performance over the previous generation of routers, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12 supports Layer-2 switching and scalable configuration using EdgeOS or UISP.

EdgeRouter 12
Dimensions 268.1 x 136.5 x 31.1 mm
(10.55 x 5.37 x 1.22")
Weight 700 g
(1.54 lb)
Max. Power Consumption 20W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
Power Supply External AC/DC Adapter
Passive PoE
Voltage Range
Max. Wattage per Port
DC/PoE Passthrough
20W (24V)
Supported Voltage Range 9 - 30VDC
Button Reset
LEDs
System
Data Ports
SFP Data Port Power
Speed/Link/Activity;PoE (Ports 0 and 9 only)
Link/Activity
Processor 4-Core 1 GHz MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Interfaces
Management

Networking
(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports
Port 0 Supports PoE IN;
Port 9 Supports PoE Out
(2) 1 Gbps SFP Ports
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC

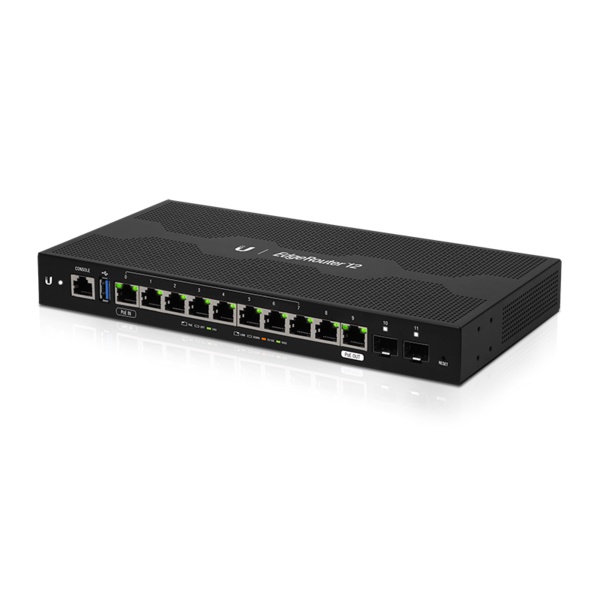

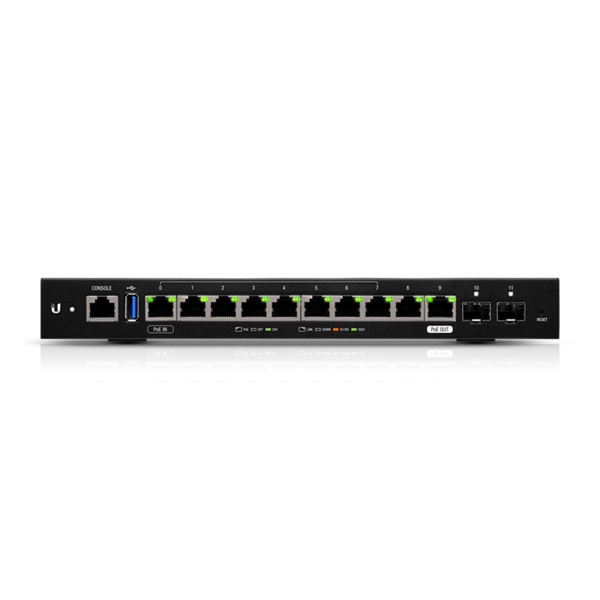

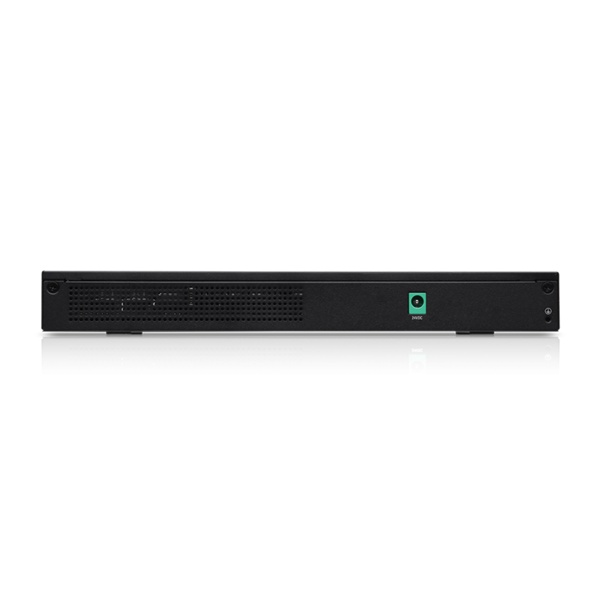

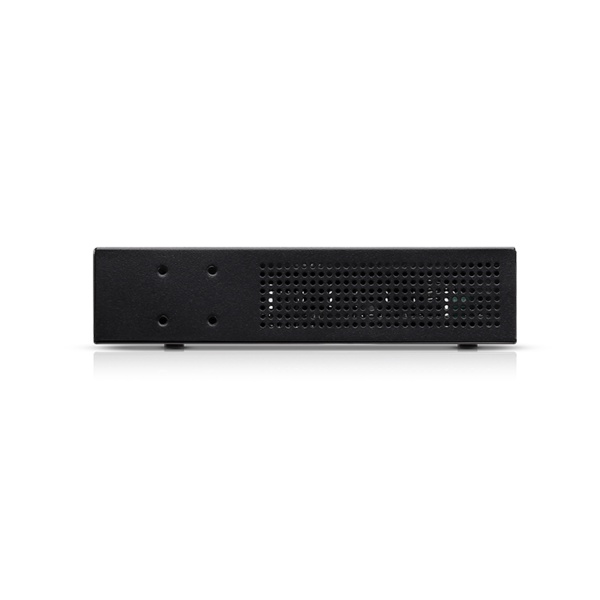

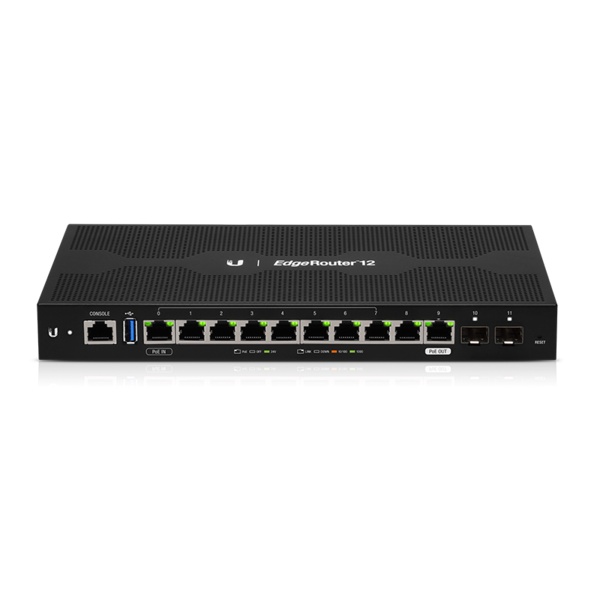

Gambar produk
