EdgePoint S16

EP-S16

Application-specific WISP control point featuring 16 RJ45 Ethernet ports and two SFP+ ports.


EdgePoint S16
Dimensions 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Weight 3.4 kg (7.50 lb)
Enclosure Characteristics Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54VDC, 6A
Passive PoE Input (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Power Monitoring (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range 56 to 42VDC
Buttons Reset
LEDs Power, Speed, Link, Activity, PoE
Ports (1) RJ45 Serial Port (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports
Processor ARM Cortex-A9 400 MHz
Memory 256 MB DDR3 RAM
Code Storage 32 MB
Certifications CE, FCC, IC
Mounting Pole mount, wall mount
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing

Gambar produk

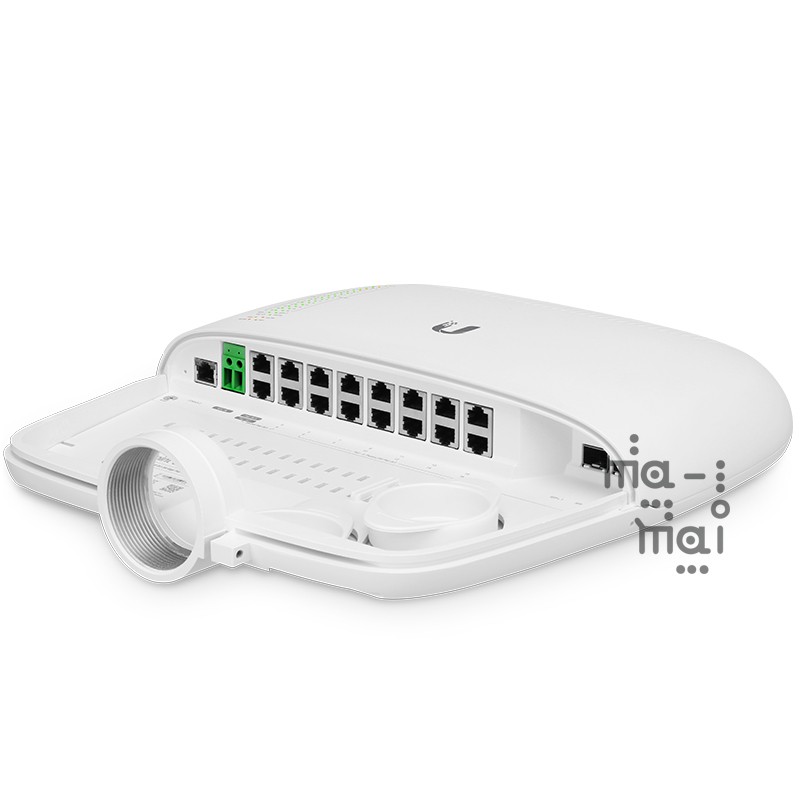

Ubiquiti EdgeMAX Edge Point EP‑S16 EdgePoint S16

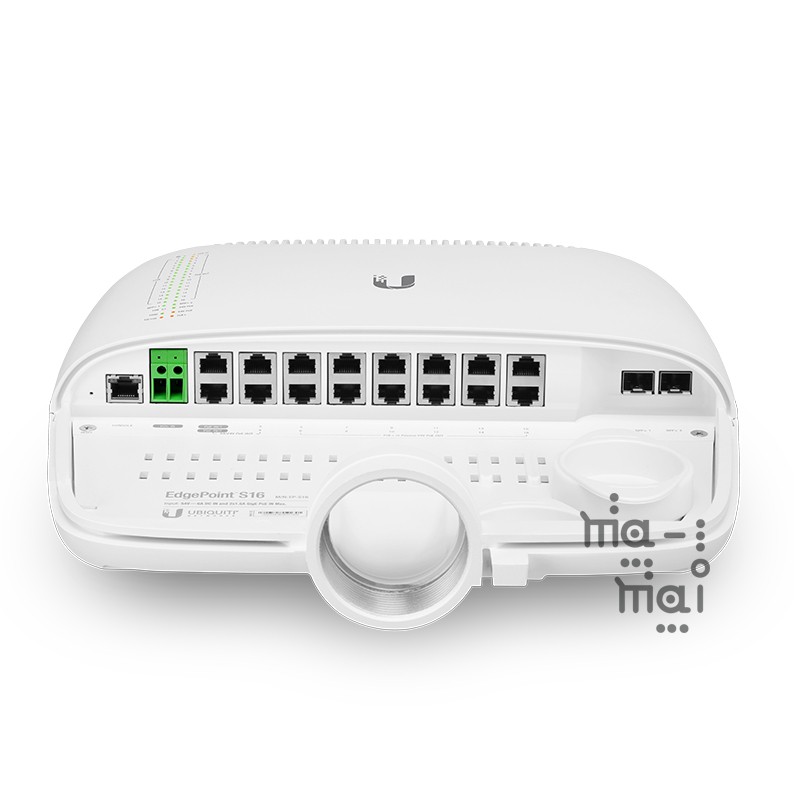

Ubiquiti EdgeMAX Edge Point EP‑S16 EdgePoint S16

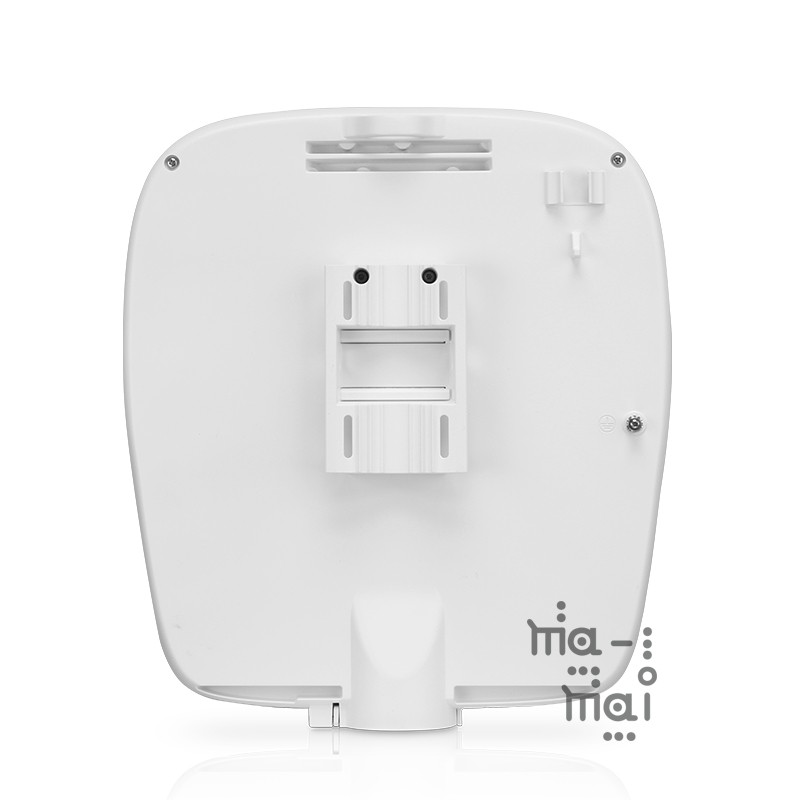

Ubiquiti EdgeMAX Edge Point EP‑S16 EdgePoint S16

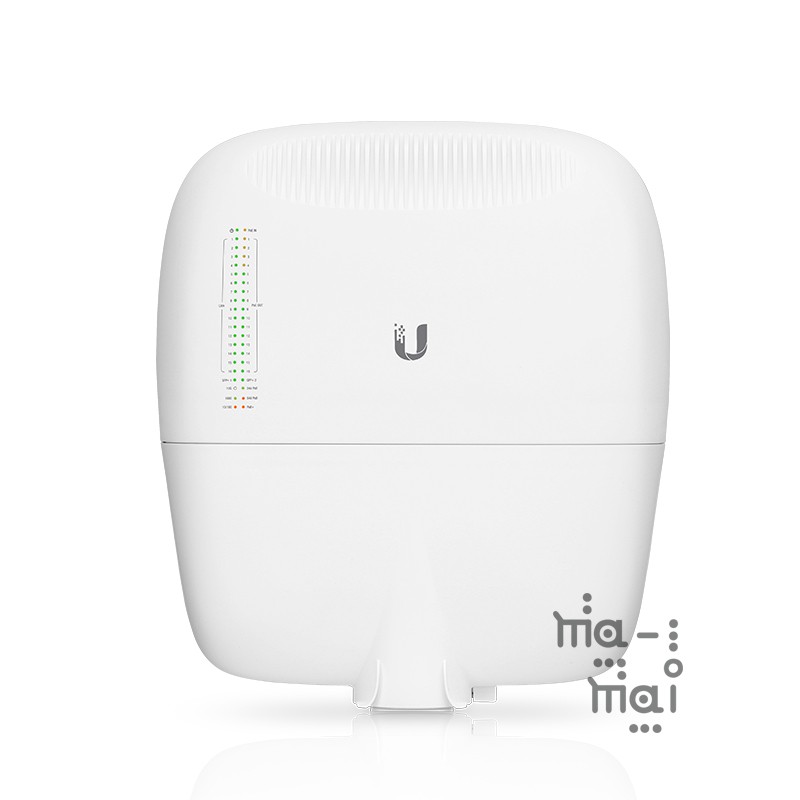

Ubiquiti EdgeMAX Edge Point EP‑S16 EdgePoint S16
