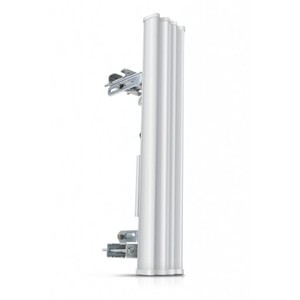

UBIQUITI AM-5G19-120 Antenna Am-5g19 5ghz 19dbi 120-deg Dual-pol SectoR

Detail UBIQUITI AM-5G19-120 Antenna Am-5g19 5ghz 19dbi 120-deg Dual-pol SectoR

Product Includes:
Sector Antenna
Antenna Bracket with the Rocket Fast Mount (for the Airmax BaseStation Model only)
Pole Brackets, bolts, washers and nuts
RF Jumper Cables (weatherproof)

A World Class Antenna Design
Patent-pending next-generation technology achieves gain, cross-polarity isolation, and beam-shaping characteristic only the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting (for the Rocket) and weatherproof RF jumpers included.

AirMax BaseStation Sector Antennas and Rocket M5's have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Product Specifications:
Frequency Range: 5.15-5.85 GHz
Gain: 18.6-19.1dBi
Polarization: Dual Linear
Cross-pol Isolation: 28dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 123 deg.
Vpol Beamwidth (6dB): 123 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 27.6x5.7x3.1in (700x145x79mm) diameter
Weight: 13.0lbs (5.9kg)
Windloading: 160 mph
