Detail Ubiquiti AM-5AC22-45 AirMax BaseStation 5Ghz AC 22dBi 45 derajat
5GHz AirMax BaseStation, 22dBi, 45 deg, AC
AM-5AC22-45

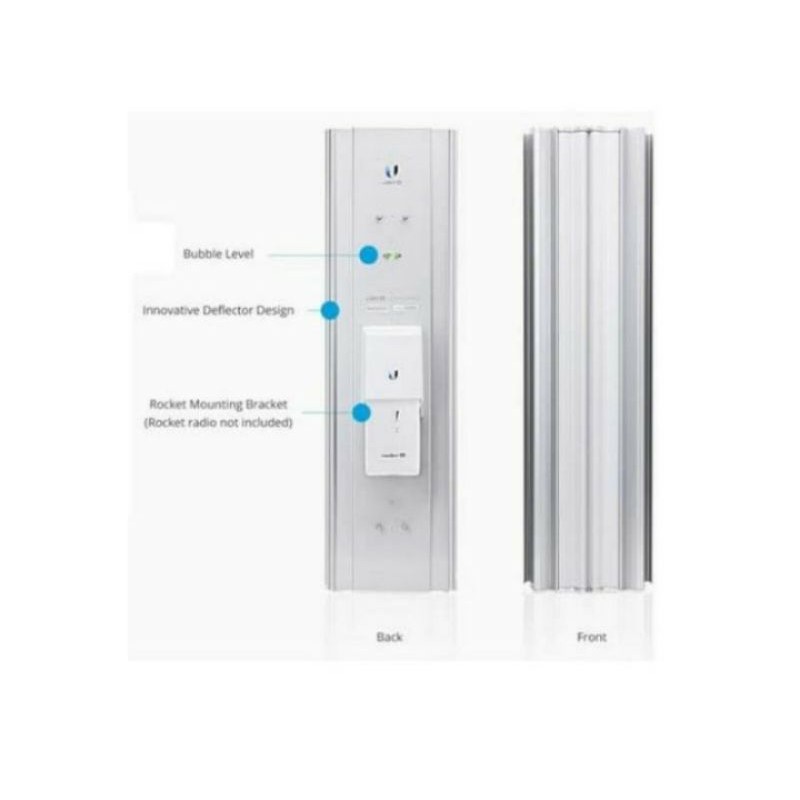

airMAX® ac 2x2 BaseStation Sector Antenna The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
AM-5AC22-45 Dimensions (mm) 750 x 215 x 94 Weight 6 kg Frequency Range 5.10 - 5.85 GHz Gain 22 dBi HPOL Beamwidth 45° (6 dBi) VPOL Beamwidth 45° (6 dBi) Electrical Beamwidth 4° Electrical Downtilt 2° Max. VSWR 1.5:1 Wind Survivability 200 km/h (125 mph) Wind Loading 347 N @ 200 km/h (78 lbf @ 125 mph) Polarization Dual-Linear Cross-pol Isolation 30 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
