Ubiquiti Airmax Sectoral 5,8Ghz 19dbi 120degree / AM-5G19-120 / am5g19

Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti Networks
Komputer & Aksesoris > Komponen Desktop & Laptop > Processor > Ubiquiti Airmax Sectoral 5,8Ghz 19dbi 120degree / AM-5G19-120 / am5g19
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Ganzen_shopLihat semua produk Komputer & Aksesoris oleh Ganzen_shop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

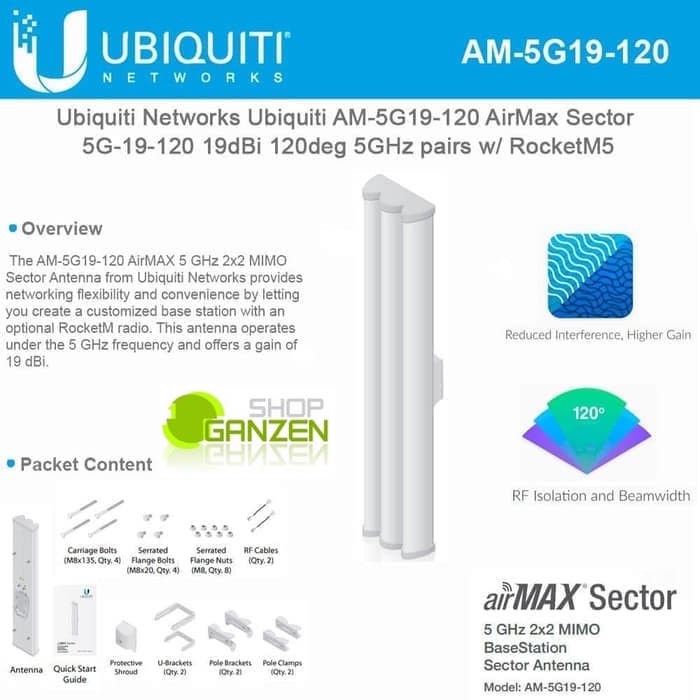

Detail Ubiquiti Airmax Sectoral 5,8Ghz 19dbi 120degree / AM-5G19-120 / am5g19

Ubiquity Antena Sectoral 5Ghz 19dbi 120degree AM-5G19-120

AirMax BaseStation Sector Antennas AM and Rocket M5's have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Product Specifications:
Frequency Range: 5.15-5.85 GHz
Gain: 18.6-19.1dBi
Polarization: Dual Linear
Cross-pol Isolation: 28dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 123 deg.
Vpol Beamwidth (6dB): 123 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 27.6x5.7x3.1in (700x145x79mm) diameter
Weight: 13.0lbs (5.9kg)
Windloading: 160 mph

Gambar produk

Ubiquiti Airmax Sectoral 5,8Ghz 19dbi 120degree / AM-5G19-120 / am5g19
Ubiquiti Airmax Sectoral 5,8Ghz 19dbi 120degree / AM-5G19-120 / am5g19
Lihat lebih banyak informasi produk
