Ubiquiti airMAX PowerBeam AC 5 GHz 620 mm Bridge PBE-5AC-620

Detail Ubiquiti airMAX PowerBeam AC 5 GHz 620 mm Bridge PBE-5AC-620

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

airMAX PowerBeam AC 5 GHz, 620 mm Bridge

PBE-5AC-620-US

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate and a 620 mm transmission range.

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Features:
Highly Efficient Antenna Beam Performance
Custom Ubiquiti® airMAX® ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Innovative Snap and Lock Assembly
Proprietary InnerFeed™ Technology

PBE-5AC-620
Dimensions 620 x 620 x 386 mm
(24.41 x 24.41 x 15.2")
Weight 6.4 kg
(14.11 lbs)
Power Supply 24V, 0.5A Gigabit PoE
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20-26VDC
Operating Frequency MHz
Worldwide

USA
5150 - 5875
U-NII-1: 5150 - 5250
U-NII-2A: 5250 - 5350
U-NII-2C: 5470 - 5725
U-NII-3: 5725 - 5850
Gain 29 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 16 MB Flash
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.6:1
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Wind Loading Radome Excluded: 1510 N @ 200 km/h (340 lbf @ 125 mph)
Radome Included: 1830 N @ 200 km/h (411 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6

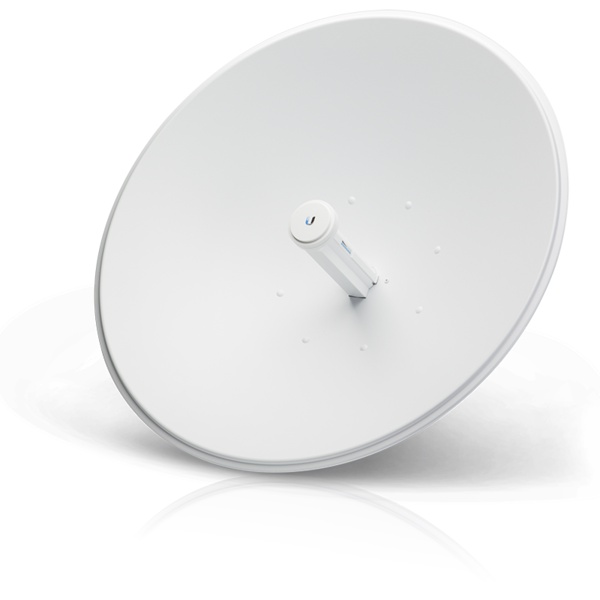

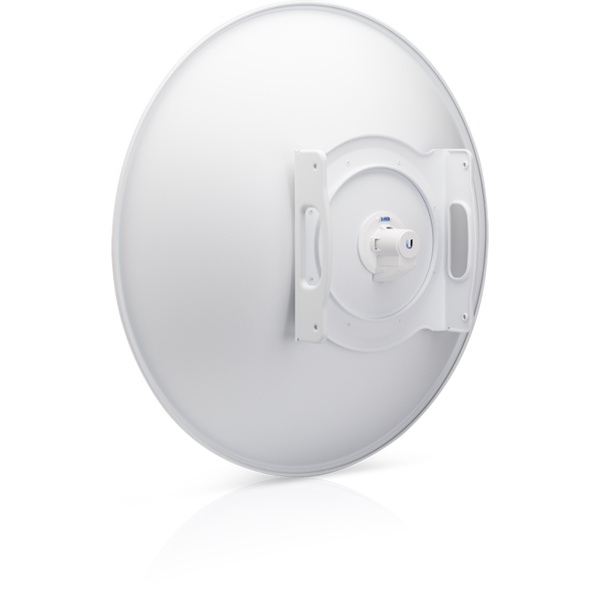

Gambar produk
