Ubiquiti airMAX Legacy PBE‑M2‑400 PowerBeam M2 400

Detail Ubiquiti airMAX Legacy PBE‑M2‑400 PowerBeam M2 400

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

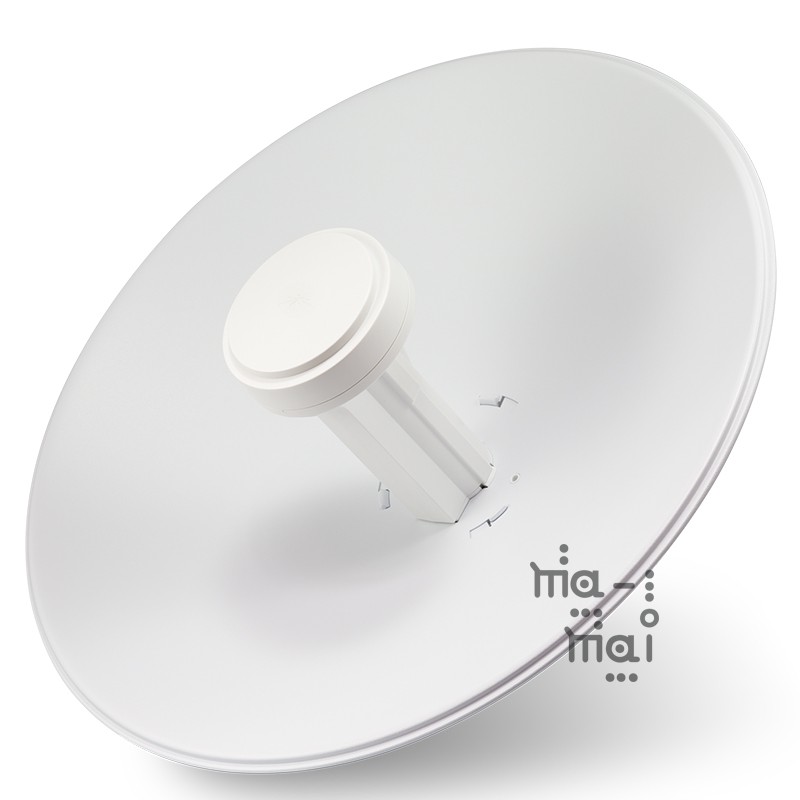

PowerBeam M2 400

PBE-M2-400

High-Performance airMAX® Bridge Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.

PBE-M2-400
Dimensions 420 x 420 x 289 mm (16.54 x 16.54 x 11.38")
Weight 1.795 kg (3.96 lb)
Power Supply 24V, 0.5A PoE
Max. Power Consumption 6W
Operating Frequency 2405-2475 MHz
Gain 18 dBi
Networking Interface (1) 10/100 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Wind Loading 278.4 N @ 120 km/h (63 lbf @ 75 mph)
Wind Survivability 120 km/h (75 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Gambar produk
