Ubiquiti airMAX Legacy NSM5 NanoStation M5

Detail Ubiquiti airMAX Legacy NSM5 NanoStation M5

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

airMAX NanoStationM 5 GHz Station

NSM5

Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

NSM5
Dimensions 294 x 31 x 80 mm
(11.57 x 1.22 x 3.15")
Weight 400 g (14.11 oz)
Power Supply (PoE) 24V, 0.5A
Max. Power Consumption 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency
Worldwide
USA
USA DFS
5170-5875 MHz
5725-5850 MHz
5250-5850 Mhz
Gain 14.6-16.1 dBi

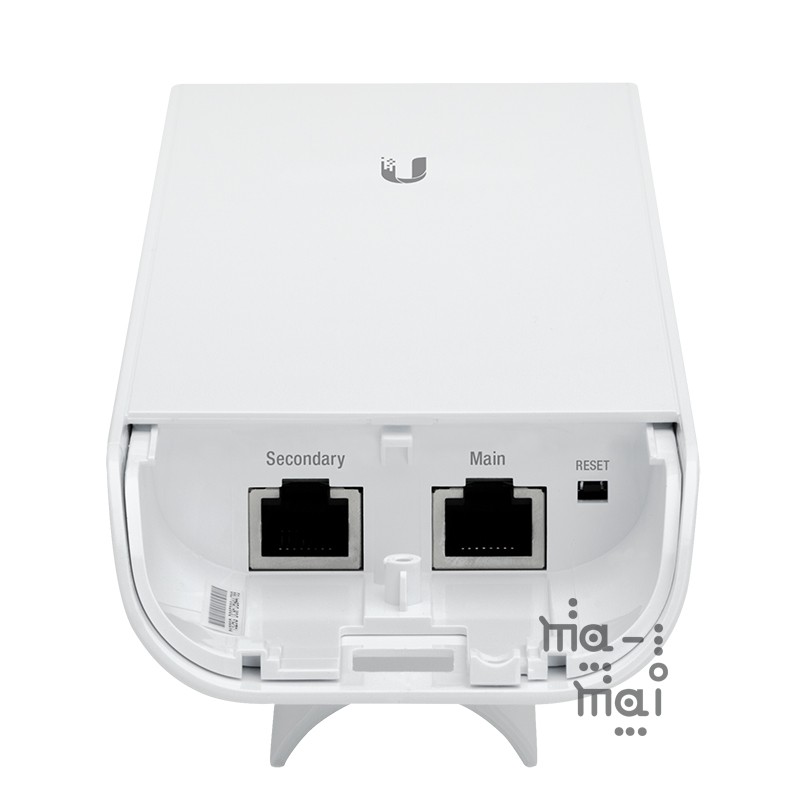

Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Frequency 5 GHz
Cross-pol Isolation 22 dB Minimum
Max. VSWR 1.6:1
Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4

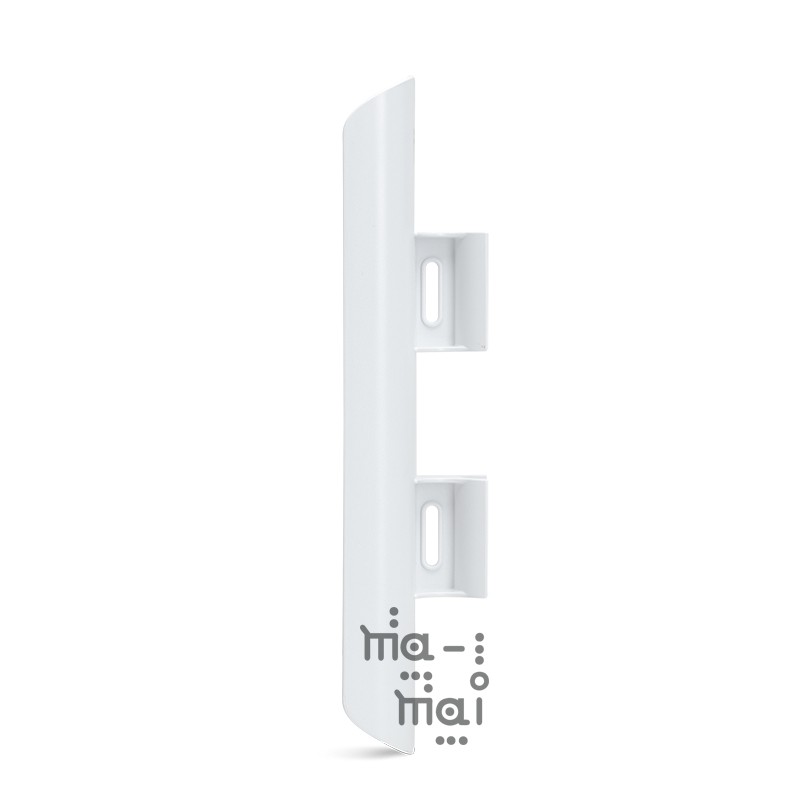

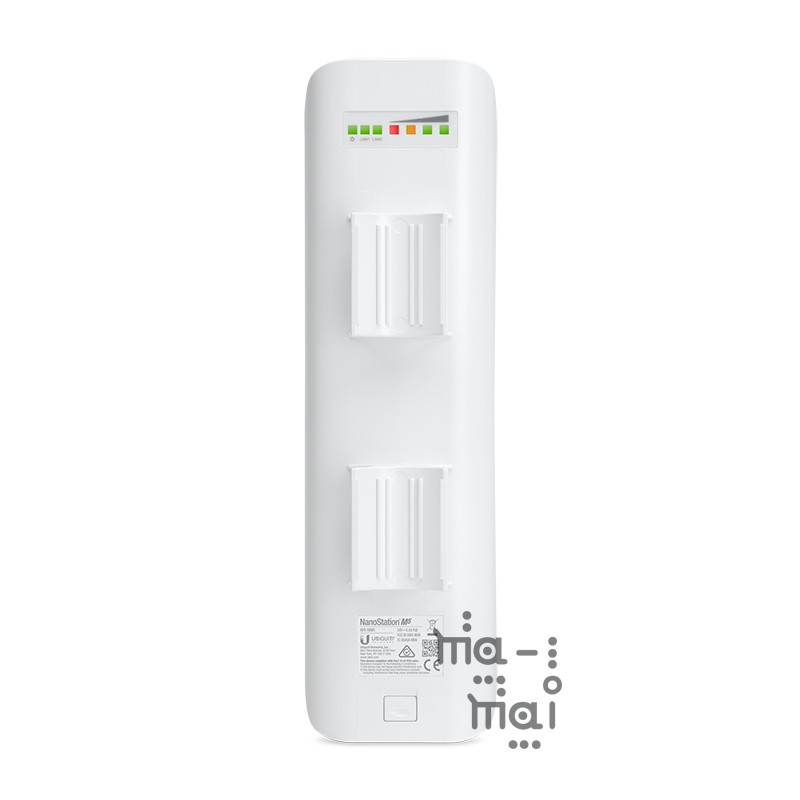

Gambar produk
