Ubiquiti airMAX Legacy NSM2 NanoStation M2

Detail Ubiquiti airMAX Legacy NSM2 NanoStation M2

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

airMAX NanoStation M2

NSM2

Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

NSM2

Dimensions 294 x 31 x 80 mm
(11.57 x 1.22 x 3.15")
Weight 400 g
(14.11 oz)
Power Supply (PoE) 24V, 0.5A 24V, 0.5A
Max. Power Consumption 5.5W 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency 2412-2462 MHz
Gain 10.4-11.2 dBi
Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Frequency 2.4 GHz
Cross-pol Isolation 23 dB Minimum
Max. VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4

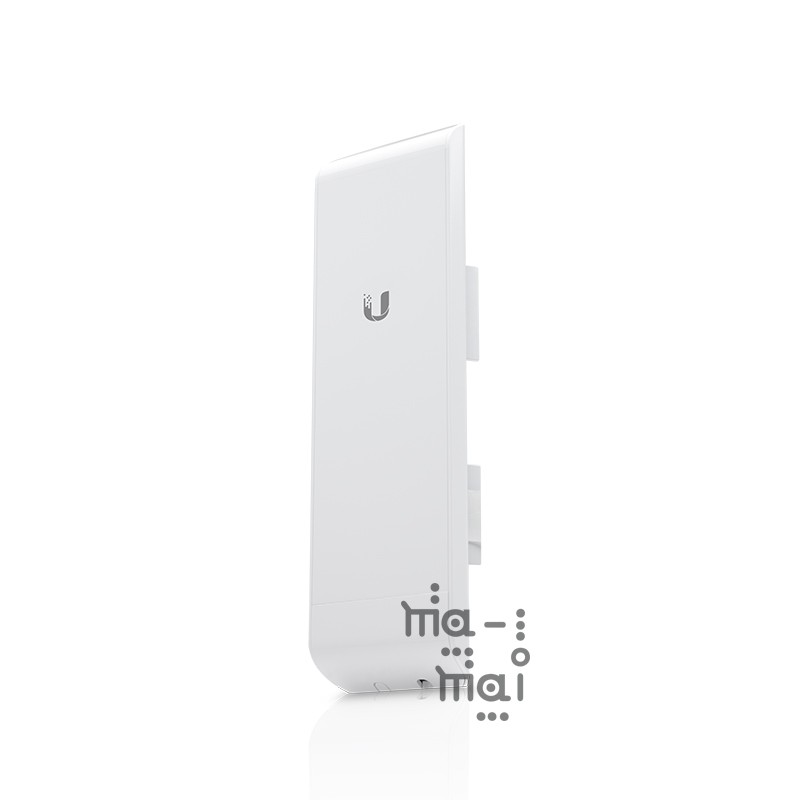

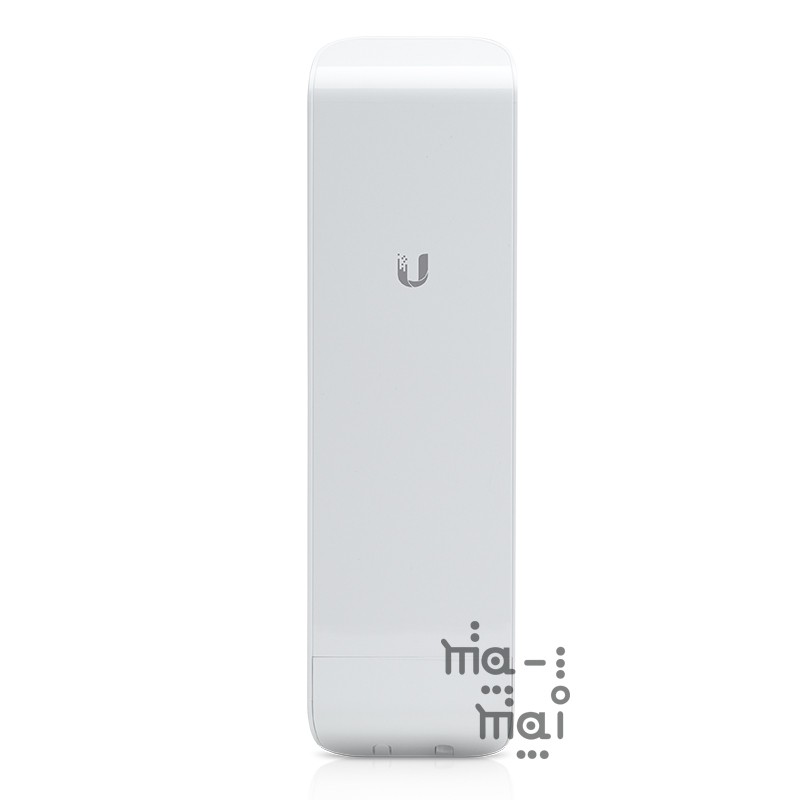

Gambar produk
