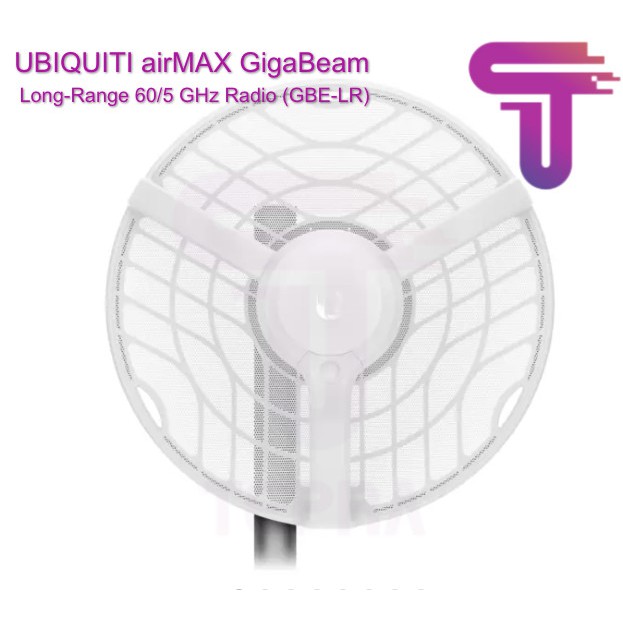

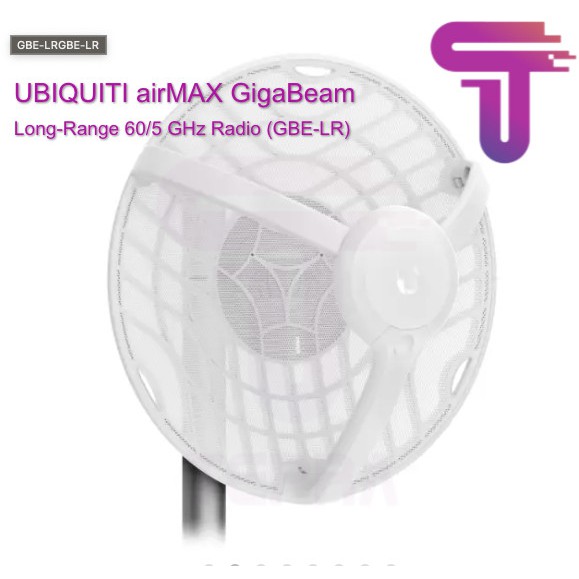

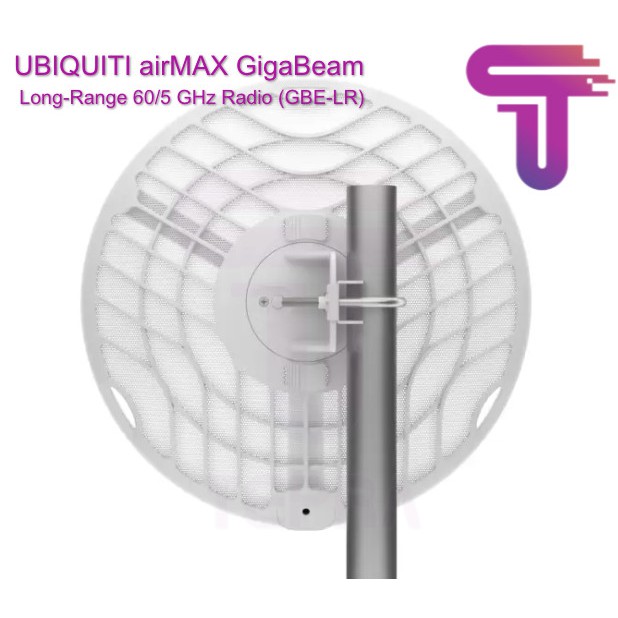

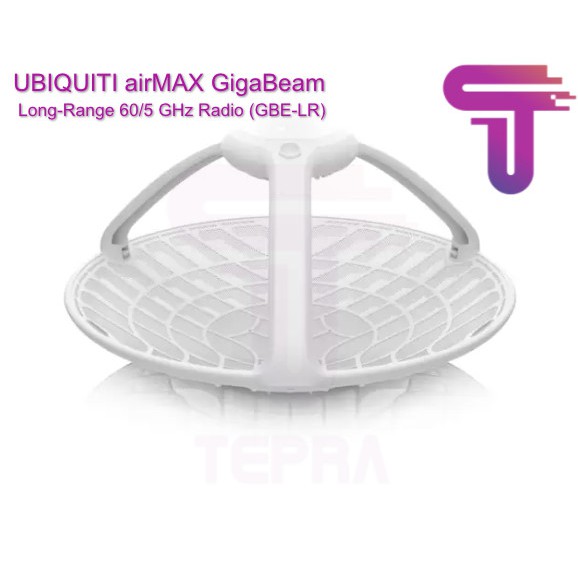

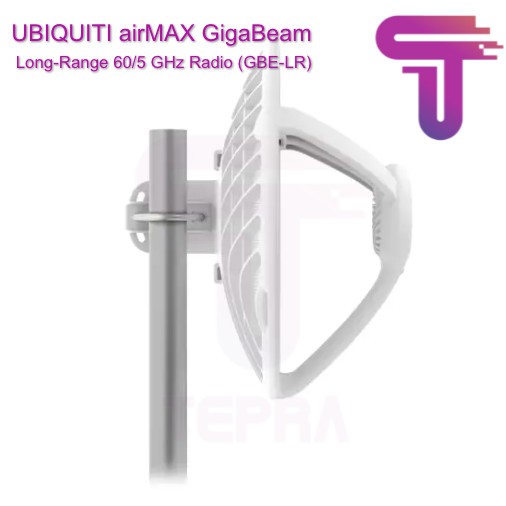

UBIQUITI airMAX GigaBeam Long-Range 60/5 GHz Radio (GBE-LR)

Detail UBIQUITI airMAX GigaBeam Long-Range 60/5 GHz Radio (GBE-LR)

airMAX GigaBeam Long-Range 60/5 GHz Radio
airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km Range

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Featuring a high-gain dish antenna, the GigaBeam LR is an airMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km. The GigaBeam LR includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app.

Features:

60 GHz radio with 5 GHz radio backup
Low-interference 60 GHz spectrum
Up to 1+ Gbps with low latency
Long-range performance
2.4 GHz management radio
Full bandwidth support: 2.16 GHz

Mechanical
Dimensions
Ø415 x 303 mm (Ø16.34 x 11.93")
Weight
Without Mount: 1.3 kg (2.87 lb)
With Mount: 1.8 kg (3.97 lb)
Enclosure Characteristics
Aluminum / UV Stabilized Polycarbonate
Hardware
Processor
Quad-Core ARM Cortex A7
Memory
256 MB DDR3
Networking Interface
10/100/1000 Mbps Ethernet RJ45
RF Connections
Internal
Max. Power Consumption
11W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply
24VDC, 0.5A Gigabit PoE Adapter
Supported Voltage Range
22 to 26VDC
ESD/EMP Protection
Air/Contact: ± 24kV
Operating Temperature
-40 to 60° C (-40 to 140° F)
Operating Humidity
5 - 95% Noncondensing
Certifications
FCC, IC, CE
LEDs
Power
Flashing White: Bootup in Progress
White: System Ready, Ubiquiti® Internet Service Provider (UISP™) Not Configured, Not Connected
Flashing Blue: System Ready, UISP Configured, but Cannot Connect
Blue: System Ready, UISP Configured and Connected
Ethernet
Flashing Blue: Ethernet Traffic Detected
5G
Blue: Active Connection
60G
Blue: Active Connection
Software
OS
airOS®
Operating Modes
PtP
Ubiquiti Specific Features
Integrated 60 GHz and 5 GHz Radios, Discovery Protocol
Security
WPA2 AES Only
Dashboard
Yes
Wireless Settings
Yes
Network Settings
Yes
System
Yes
Services
UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools
Antenna Alignment Tool, Discovery Utility, Trace


SKU : 9000000199
