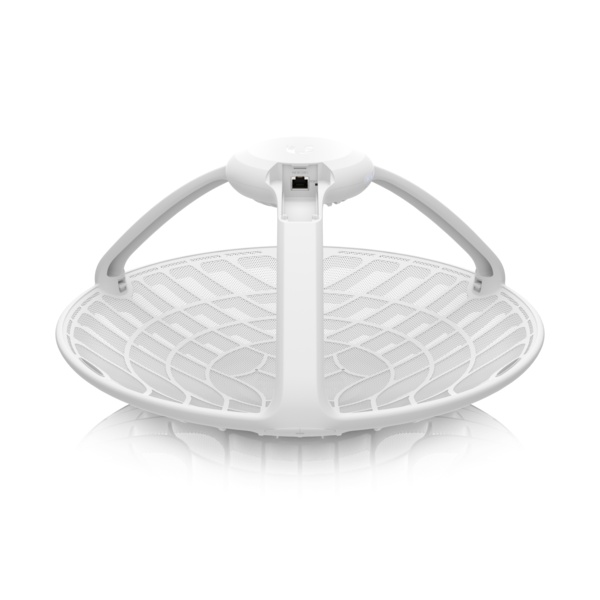

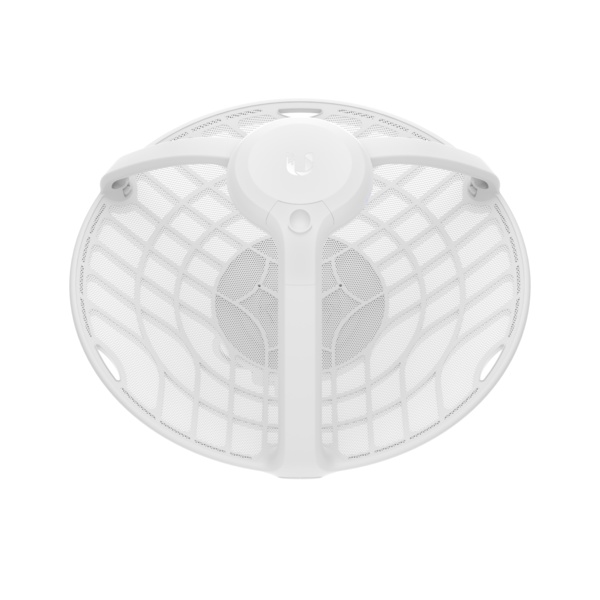

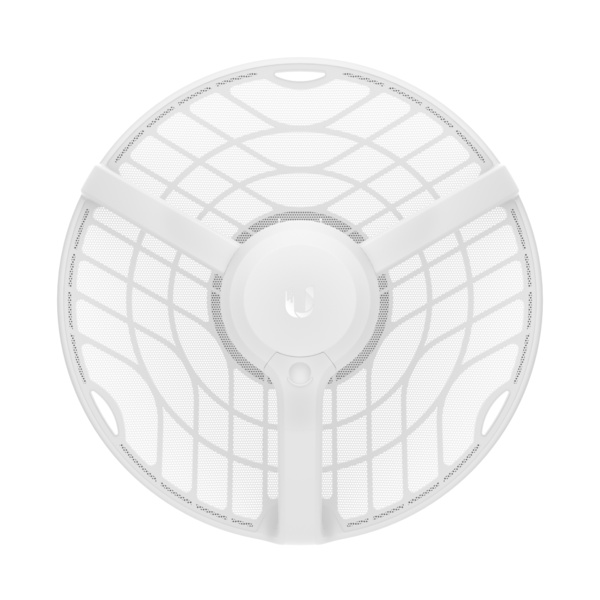

airMAX GigaBeam Long-Range 60/5 GHz Radio

GBE-LR-US

airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km Range

Featuring a high-gain dish antenna, the GigaBeam LR is an airMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km. The GigaBeam LR includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app.

Features:
60 GHz radio with 5 GHz radio backup
Low-interference 60 GHz spectrum
Up to 1+ Gbps with low latency
Long-range performance
2.4 GHz management radio
Full bandwidth support: 2.16 GHz

Mechanical
Dimensions
Ø415 x 303 mm (Ø16.34 x 11.93")

Weight
Without Mount: 1.3 kg (2.87 lb)

With Mount: 1.8 kg (3.97 lb)

Enclosure Characteristics
Aluminum / UV Stabilized Polycarbonate

Hardware
Processor
Quad-Core ARM Cortex A7

Memory
256 MB DDR3

Networking Interface
10/100/1000 Mbps Ethernet RJ45

RF Connections
Internal

Max. Power Consumption
11W

Power Method
Passive PoE (Pairs 4, 5+; 7, 8-)

Power Supply
24VDC, 0.5A Gigabit PoE Adapter

Supported Voltage Range
22 to 26VDC

ESD/EMP Protection
Air/Contact: ± 24kV

Operating Temperature
-40 to 60° C (-40 to 140° F)

Operating Humidity
5 - 95% Noncondensing

Certifications
FCC, IC, CE

LEDs
Power
Flashing White: Bootup in Progress

White: System Ready, Ubiquiti® Internet Service Provider (UISP™) Not Configured, Not Connected

Flashing Blue: System Ready, UISP Configured, but Cannot Connect

Blue: System Ready, UISP Configured and Connected

Ethernet
Flashing Blue: Ethernet Traffic Detected

5G
Blue: Active Connection

60G
Blue: Active Connection

Software
OS
airOS®

Operating Modes
PtP

Ubiquiti Specific Features
Integrated 60 GHz and 5 GHz Radios, Discovery Protocol

Security
WPA2 AES Only
