Ubiquiti airMAX CPE PBE-5AC-500 PowerBeam 5AC 500

Detail Ubiquiti airMAX CPE PBE-5AC-500 PowerBeam 5AC 500

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

airMAX PowerBeam AC 5 GHz, 500 mm Bridge

PBE-5AC-500-US

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate and a 500 mm transmission range.

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Features:
Highly Efficient Antenna Beam Performance
Custom Ubiquiti® airMAX® ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Innovative Snap and Lock Assembly
Proprietary InnerFeed™ Technology

PBE-5AC-500
Dimensions
Radome Excluded
Radome Included
520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
525 x 525 x 315 mm (20.67 x 20.67 x 12.40"
Weight
Radome Excluded
Radome Included
2.35 kg (5.18 lb)
3.15 kg (6.95 lb)
Power Supply 24V, 0.5A Gigabit PoE
Max. Power Consumption 8.5W
Power Method Supported Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage Range 20-26VDC
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 16 MB Flash
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Channel Sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 Mhz
10/20/30/40 Mhz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Wind Loading 264.6 N @ 96 km/h
(60 lbf @ 60 mph)
Wind Survivability 96 km/h
(60 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C
(-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4

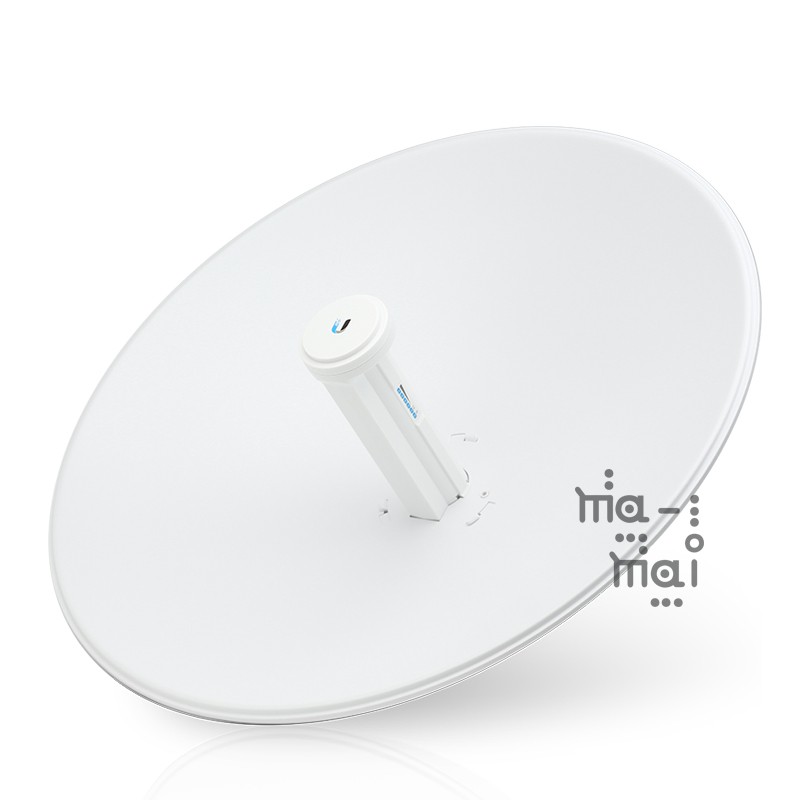

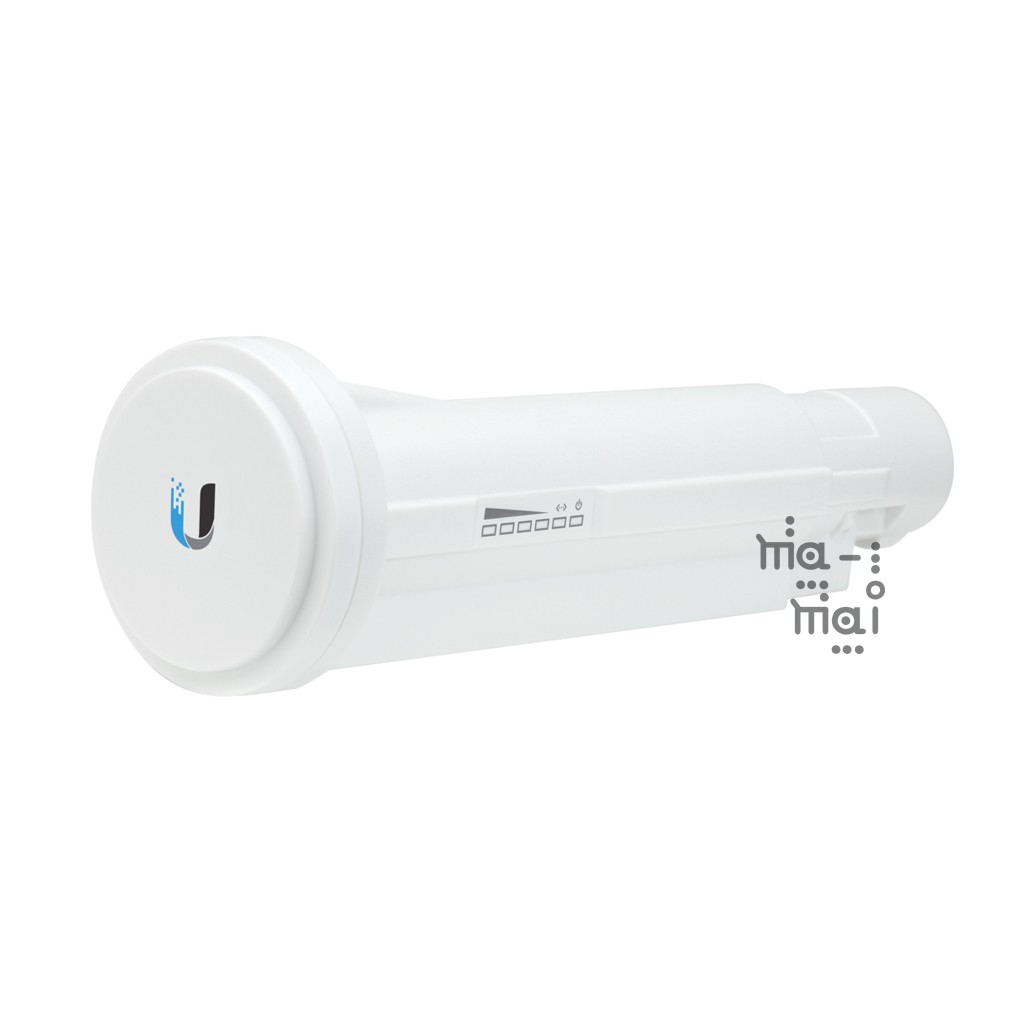

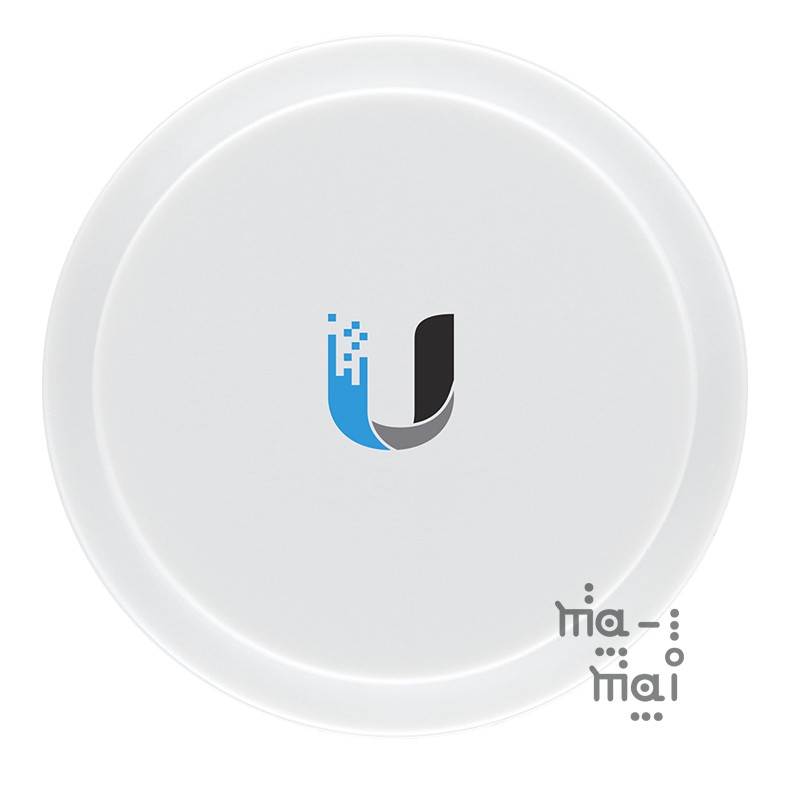

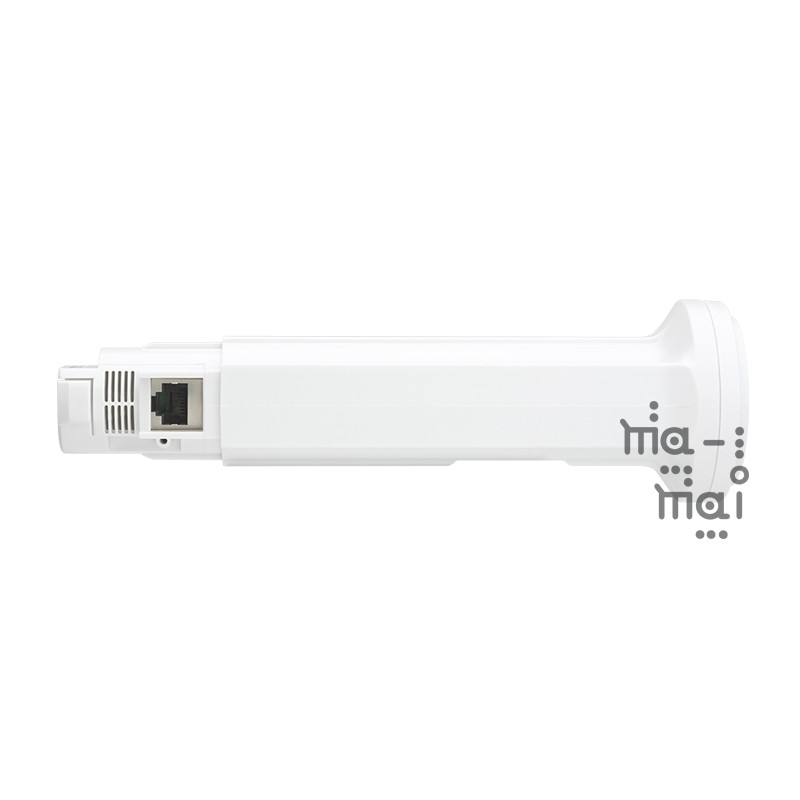

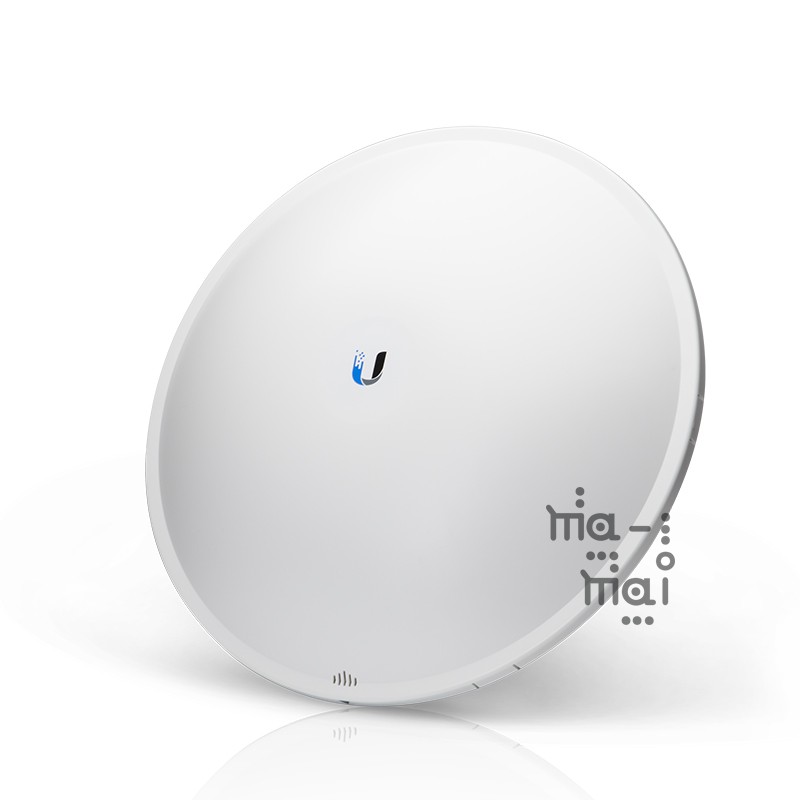

Gambar produk
