Ubiquiti airMAx CPE NBE‑5AC‑Gen2 NanoBeam 5AC Gen2

Detail Ubiquiti airMAx CPE NBE‑5AC‑Gen2 NanoBeam 5AC Gen2

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

NanoBeam 5AC Gen2

NBE-5AC-GEN2

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

New Antenna
Improved Radio Design
Improved Surge Protection
Management WiFi Radio/U-Mobile App
AirOS v8.1 New UI

U-Mobile app for Android and IOS

NBE-5AC-Gen2
Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included) 530 g (1.17 lb)
Gain 19 dBi
Networking Interface (2) 10/100/1000 Ethernet Port, Wi-Fi for Management
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 80° C (-40 to 176 F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz,
U-NII-2A: 5250-5350 MHz,
U-NII-2A: 5240-5725 MHz,
U-NII-3: 5725-5850 MHz

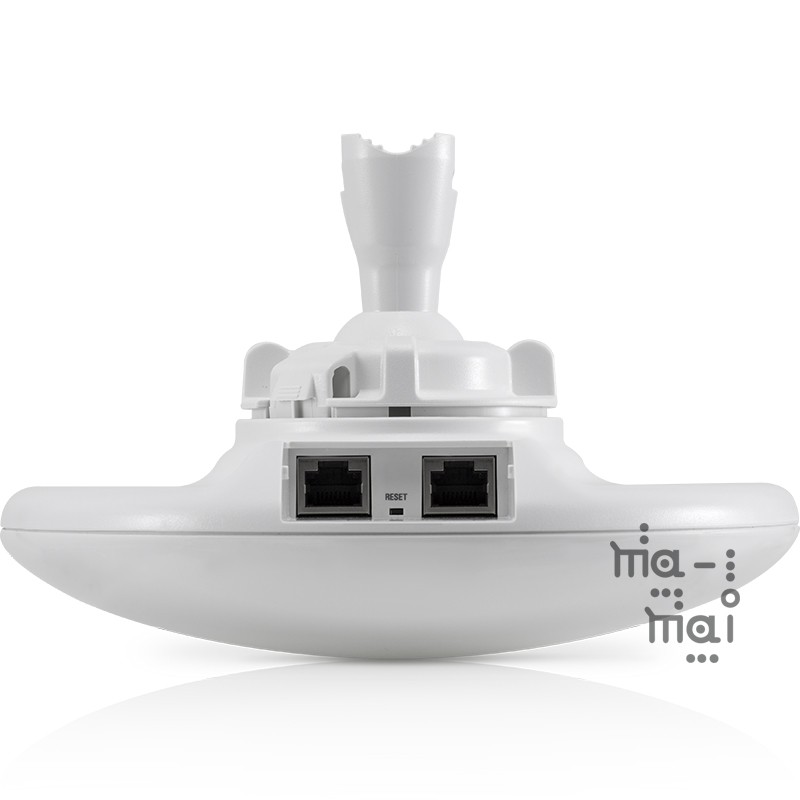

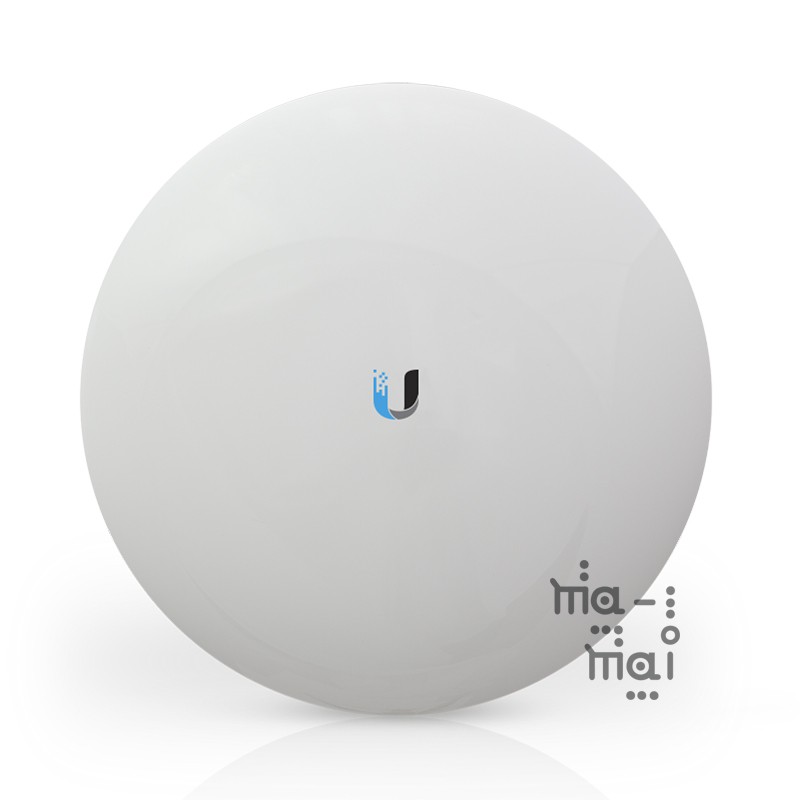

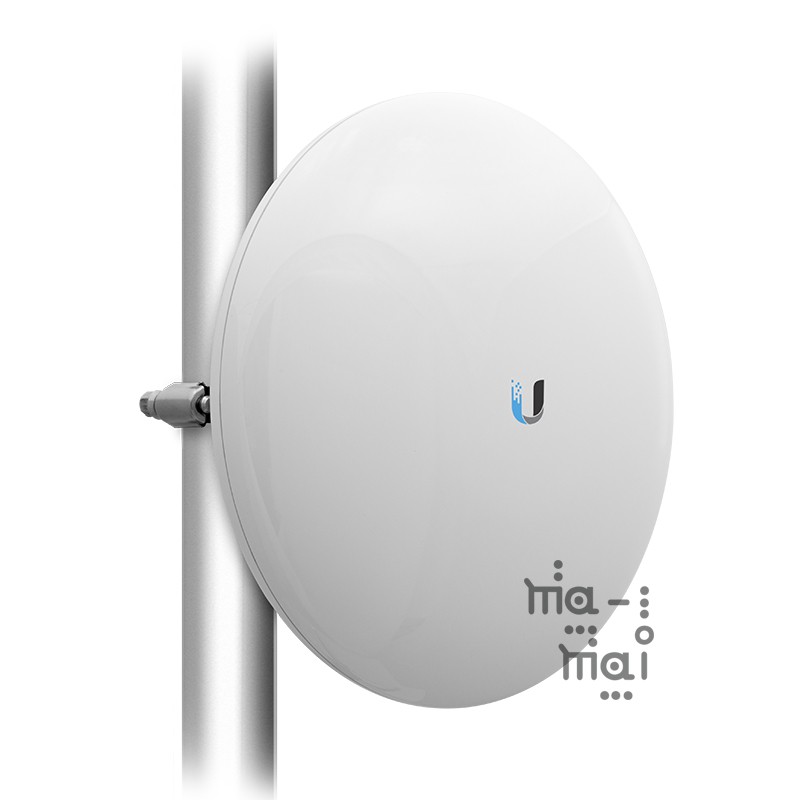

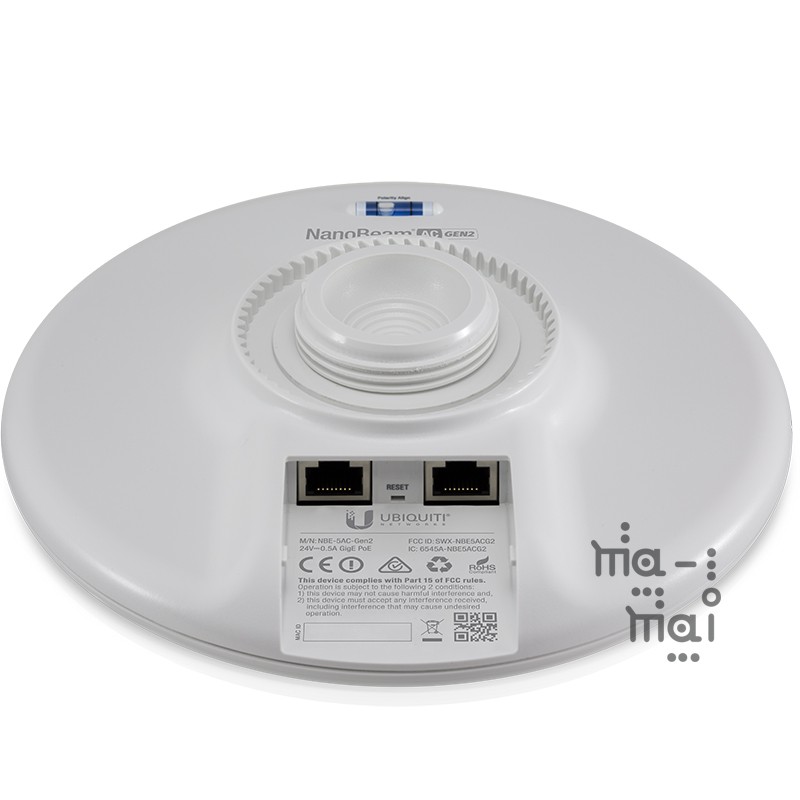

Gambar produk
